How to Select the Best Plumbing Fittings for High-Pressure Lines

To select the best plumbing fittings for high-pressure lines, you'll need to contemplate several key factors. First, guarantee the fittings have appropriate pressure ratings for your system's maximum pressure. Choose materials compatible with your fluid and operating conditions. Ponder connection types that offer the best seal and strength for your application. Match fitting sizes to your flow requirements and pipe dimensions. Don't forget to account for environmental factors like temperature and corrosion potential. Proper maintenance is indispensable for longevity, so select fittings that allow for easy inspection and replacement. By understanding these critical aspects, you'll be well-equipped to make informed decisions for your high-pressure plumbing system.

Understanding Pressure Ratings

When it comes to high-pressure plumbing, understanding pressure ratings is essential. You'll need to know the maximum pressure your system will encounter to select fittings that can withstand it. Pressure ratings are typically measured in pounds per square inch (PSI) and indicate the maximum pressure a fitting can handle safely.

To choose the right fittings, you must consider both static and pivotal pressure. Static pressure is the force exerted when water isn't flowing, while pivotal pressure accounts for flow dynamics and pressure variations that occur during operation. Always select fittings rated higher than your system's maximum pressure to assure a safety margin.

It's crucial to understand that different materials have varying pressure capacities. For instance, PVC fittings generally have lower pressure ratings than metal ones. Temperature also affects pressure ratings, with higher temperatures often reducing a fitting's pressure capacity.

When reviewing pressure ratings, pay attention to the working pressure and burst pressure. Working pressure is the maximum recommended operating pressure, while burst pressure is the point at which the fitting fails. Always base your selection on the working pressure, not the burst pressure, to maintain system safety and longevity.

Material Compatibility Considerations

Beyond pressure ratings, you'll need to ponder material compatibility when selecting fittings for high-pressure lines. The chemical composition of the fluid running through your system can significantly impact material performance and longevity. You'll want to choose fittings that offer excellent corrosion resistance against the specific substances they'll encounter.

Consider these factors when evaluating material compatibility:

Chemical composition of the fluid
Temperature range of operation
Presence of abrasive particles
Frequency of pressure fluctuations

Stainless steel fittings are often a go-to choice for their sturdy corrosion resistance and durability in high-pressure applications. However, they're not suitable for all situations. Brass fittings, for instance, might be more appropriate for certain water-based systems, while plastic fittings could be ideal for handling corrosive chemicals.

Don't forget to account for galvanic corrosion when mixing different metals in your system. This electrochemical process can accelerate material degradation and lead to premature failure. To guarantee ideal material performance and system longevity, consult compatibility charts and seek expert advice when in doubt about the best fitting material for your specific high-pressure application.

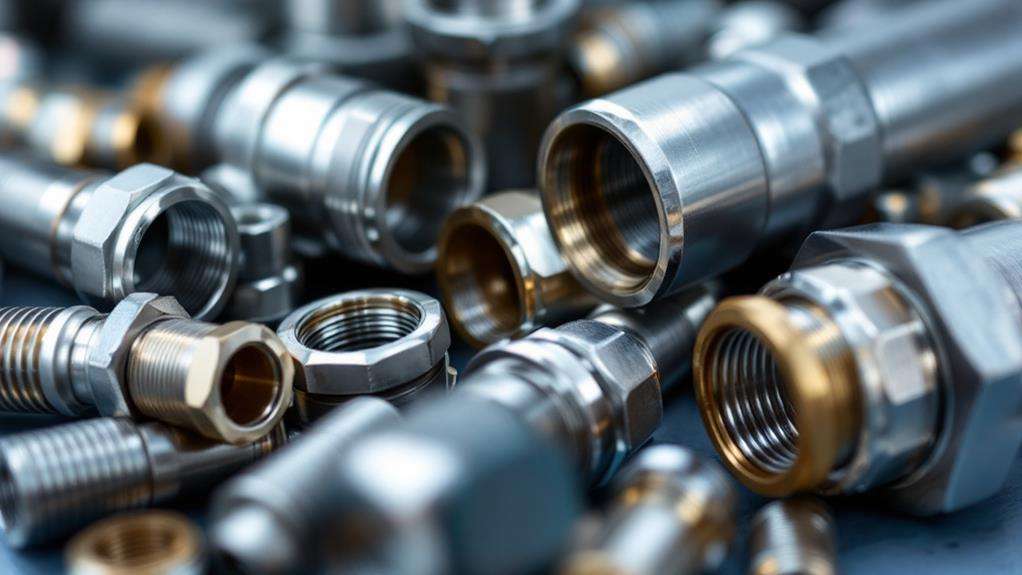

Connection Types and Methods

Once you've determined the appropriate materials for your high-pressure plumbing fittings, it is indispensable to examine the various connection types and methods available. The choice you make will markedly impact joint integrity and overall system performance.

Threaded connections are common for high-pressure applications. They're easy to install and disassemble but require proper sealing techniques to prevent leaks. Flanged connections offer excellent joint integrity and are ideal for larger diameter pipes. You'll need to confirm proper alignment and torque when installing flanged fittings.

Welded connections provide superior strength and leak resistance but require skilled labor and specialized equipment. For plastic pipes, solvent welding is an effective method that creates a strong, permanent bond. Compression fittings are versatile and don't require special tools, making them popular for quick repairs or installations in tight spaces.

Consider push-to-connect fittings for their ease of installation and reliability in high-pressure systems. They're particularly useful in areas with limited access. Regardless of the connection type you choose, proper installation techniques are pivotal. Follow manufacturer guidelines, use appropriate tools, and confirm clean, properly prepared surfaces to maximize joint integrity and system longevity.

Size and Flow Requirements

Three key factors determine the size and flow requirements for high-pressure plumbing fittings: the system's operating pressure, flow rate, and fluid characteristics. When selecting fittings, you'll need to review these factors alongside the pipe diameter specifications to guarantee compatibility and excellent performance.

Start by calculating your system's maximum flow rate and pressure requirements. This will help you determine the appropriate pipe sizes and fitting dimensions. Remember that undersized fittings can restrict flow and cause pressure drops, while oversized fittings may lead to inefficiencies and increased costs.

Consider incorporating flow control mechanisms to regulate pressure and flow within your system. These can include:

Pressure-reducing valves
Flow restrictors
Check valves
Balancing valves

Pay attention to the fluid's viscosity, temperature, and corrosive properties when selecting fittings. These factors can affect the material choice and required sizing. For example, high-viscosity fluids may require larger diameter pipes and fittings to maintain adequate flow rates.

Consult manufacturer specifications and industry standards to ensure your chosen fittings meet the necessary pressure ratings and size requirements. By carefully reviewing these factors, you'll be able to select the most appropriate plumbing fittings for your high-pressure system, ensuring excellent performance and longevity.

Environmental Factors

factors shaping environmental conditions

While size and flow requirements are key factors, environmental elements play a significant role in selecting plumbing fittings for high-pressure lines. You'll need to account for the specific climate conditions and potential corrosive components that your plumbing system will face.

In areas with extreme temperatures, you must choose fittings that can withstand thermal expansion and contraction without compromising their integrity. For cold climates, select materials resistant to freezing and cracking. In hot environments, opt for fittings that maintain their strength and don't degrade under high heat.

Corrosive elements pose another challenge. If your system will be exposed to saltwater, chemicals, or acidic substances, you'll need to choose fittings made from corrosion-resistant materials like stainless steel or specialized alloys. For underground installations, consider fittings that can withstand soil acidity and moisture.

Humidity levels also affect your choice. In high-humidity environments, you'll want fittings that resist rust and microbial growth. UV exposure is another element to consider for outdoor installations, as some materials may degrade when exposed to sunlight over time.

Maintenance and Longevity

When considering plumbing fittings for high-pressure lines, you can't overlook the importance of maintenance and longevity. Proper care and attention to your fittings will guarantee they perform ideally and last longer, saving you time and money in the long run. Establish proper inspection intervals to catch potential issues early and prevent costly failures. Regular checks should include looking for signs of wear, corrosion, or leaks.

Implement thorough cleaning procedures to maintain the integrity of your fittings. Remove debris and buildup that can compromise performance and lead to premature failure. When selecting fittings, consider materials that resist corrosion and withstand frequent cleaning without degradation.

To maximize the longevity of your high-pressure plumbing fittings:
