A Breakdown of Plumbing Connectors and Their Uses

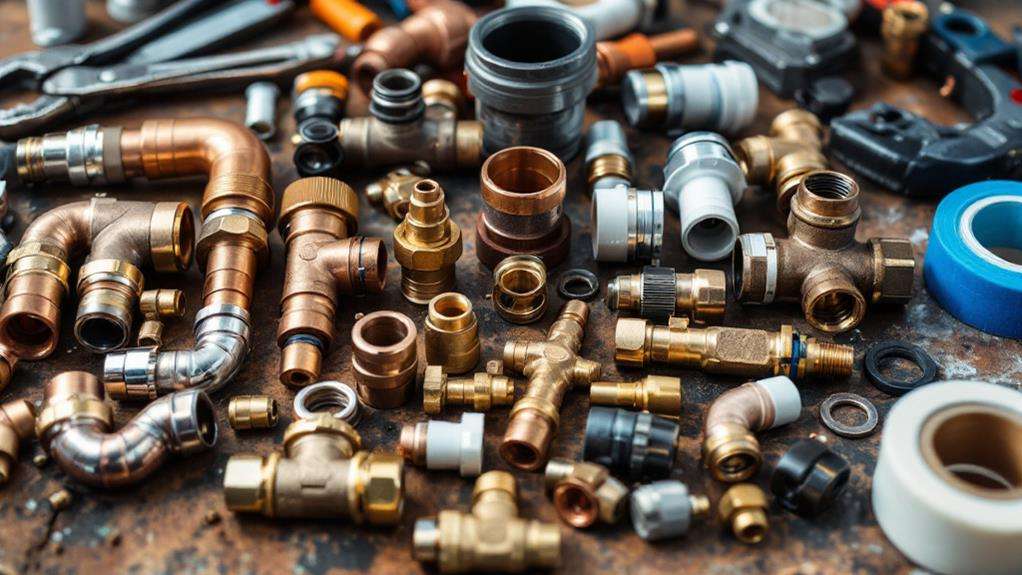

Plumbing connectors are essential components in your home's water system. You'll find couplings and unions joining pipes, while elbows and bends change water direction. Tees and wyes split or merge pipe flows, and adapters and reducers connect different-sized pipes. Caps and plugs seal off pipe ends, preventing leaks and protecting during construction. Flanges and compression fittings secure pipes to fixtures or each other. Each type serves a specific purpose, from controlling water flow to enabling future maintenance. Understanding these connectors helps you tackle basic plumbing tasks and appreciate the complexity of your home's water infrastructure.

Couplings and Unions

Couplings and unions are essential components in the world of plumbing connections. They're designed to join pipes and fittings, allowing for easy assembly and disassembly of plumbing systems. Couplings typically connect two pipes of the same size and material, while unions enable you to join pipes that may need future separation for maintenance or repairs.

When working with couplings, you'll find various types suited for different applications. Slip couplings slide over pipe ends, while compression couplings use nuts and ferrules to create a tight seal. Threaded couplings are ideal for joining pipes with matching threads. Unions, on the other hand, consist of three parts: two end pieces and a nut that joins them together.

You'll often encounter couplings and unions in conjunction with other plumbing components like ball valves and swing check valves. Ball valves allow you to control flow with a quarter-turn mechanism, while swing check valves prevent backflow in your plumbing system. When installing these valves, you'll likely use couplings or unions to connect them to your pipes, ensuring a secure and leak-free connection.

Elbows and Bends

While couplings and unions connect pipes in a straight line, elbows and bends allow you to change the direction of your plumbing system. These essential fittings come in various angles, typically 45 and 90 degrees, to accommodate different layout requirements.

You'll find elbows made from different materials, including PVC, copper, and brass, each suited for specific applications. When choosing an elbow, consider factors like pipe size, material compatibility, and pressure requirements. For tighter spaces, you might opt for tight radius elbows, while long radius elbows offer smoother water flow and less pressure loss.

Bends, on the other hand, provide a gentler curve and are often used in larger diameter pipes. They're particularly useful when you need to maneuver obstacles or make gradual directional changes. Angle bends offer more flexibility, allowing you to adjust the pipe's direction at various angles.

For situations requiring adjustability, swivel joints are indispensable. These fittings let you fine-tune the angle of connection, making them ideal for complex installations or areas where precise alignment is pivotal. By using the right combination of elbows and bends, you'll create an efficient and well-designed plumbing system.

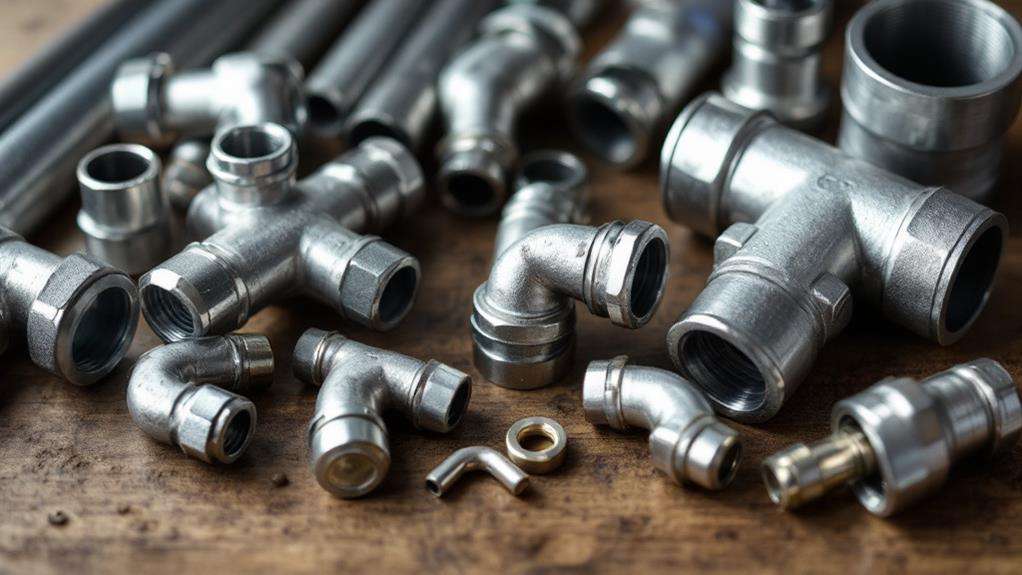

Tees and Wyes

Ever wondered how plumbers create branching pathways in pipe systems? The answer lies in tees and wyes, essential branch connectors in plumbing. These fittings allow you to split a single pipe into multiple directions, creating diverse flow paths.

Tees, shaped like the letter "T," have three openings: one inlet and two outlets. They're perfect for establishing 90-degree branches in your plumbing system. You'll often find tees in manifold configurations, where multiple pipes branch off from a single source. They're ideal for distributing water to various fixtures or connecting drain lines.

Wyes, on the other hand, resemble the letter "Y" and offer a more gradual branching angle, typically 45 degrees. This design reduces turbulence and improves flow, making wyes excellent for drain systems. They're particularly useful in situations where you need to merge two pipes into one or split a single pipe while maintaining smoother water movement.

Both tees and wyes come in various materials and sizes to suit different plumbing needs. When choosing between them, consider factors like flow requirements, space constraints, and the specific application in your plumbing project.

Adapters and Reducers

Migrating from branch connectors, we now investigate adapters and reducers—essential fittings that allow you to join pipes of different sizes or materials. These versatile components are pivotal for creating functional plumbing systems, especially when you're working with existing pipes or transitioning between different pipe types.

Adapters come in various forms, including threaded adapters and compression adapters. Threaded adapters feature internal or external threads, enabling you to connect pipes with different thread types or sizes. You'll find them useful when joining PVC to metal pipes or connecting fixtures to supply lines. Compression adapters, on the other hand, use a compression nut and ring to create a watertight seal, making them ideal for connecting pipes without soldering or threading.

Reducers, as their name suggests, allow you to move from a larger pipe to a smaller one. They're available in different configurations, such as concentric or eccentric reducers, depending on your specific needs. You'll often use reducers when you need to decrease water flow or pressure in a system. When selecting adapters or reducers, always consider the materials, sizes, and pressure requirements of your plumbing project to guarantee a proper fit and function.

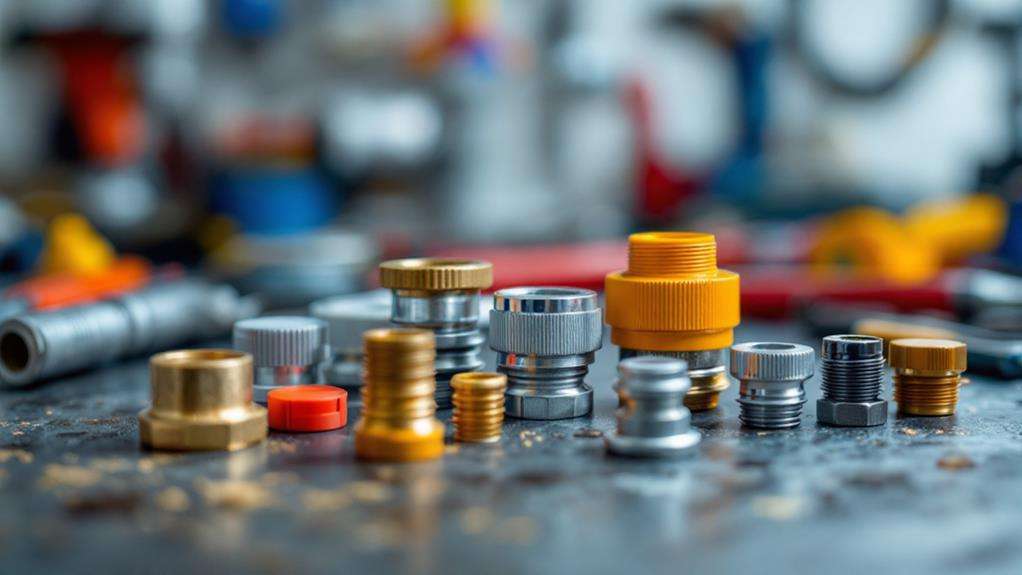

Caps and Plugs

Finality in plumbing often comes in the form of caps and plugs. These essential components are used to seal off pipe ends, preventing leaks and protecting the system from contaminants. You'll find caps and plugs in various materials, including plastic, brass, and copper, to match your existing plumbing.

Threaded caps are commonly used for temporary closures, allowing easy access for future maintenance or expansion. They screw directly onto threaded pipe ends, creating a watertight seal. Push-on caps, on the other hand, offer a quick and tool-free installation option. They're ideal for emergency repairs or when you need a temporary solution.

Ensure they're compatible with your pipe material and size. Remember that while caps cover the outside of pipes, plugs fit inside. Both serve the same purpose but are used in different situations depending on the pipe configuration and accessibility.

• Sealing off unused pipe ends
• Pressure testing plumbing systems
• Winterizing outdoor faucets
• Closing off lines during renovations
• Protecting pipes during construction

Flanges and Compression Fittings

When you're connecting pipes or attaching them to fixtures, flanges and compression fittings are your go-to solutions. Flanges are flat, circular discs that extend from the end of a pipe, creating a surface for attachment. They're typically used in high-pressure systems and come in various types, including slip-on, weld neck, and socket weld flanges. You'll often see them in industrial settings or large-scale plumbing projects.

To create a seal between flanges, you'll need gaskets. These flat rings fit between the flange faces, preventing leaks when the flanges are bolted together. Flanges usually require threaded connections, using bolts and nuts to secure the joint.

Compression fittings, on the other hand, are perfect for smaller-scale plumbing jobs. They work by compressing a ferrule or ring onto the pipe's surface, creating a watertight seal. You'll find them particularly useful when working with copper, plastic, or flexible pipes. They don't require soldering or special tools, making them a favorite among DIY enthusiasts.

To install a compression fitting, you'll slide the nut and ferrule onto the pipe, insert the pipe into the fitting body, and tighten the nut. As you tighten, the ferrule compresses, gripping the pipe and forming a seal.
