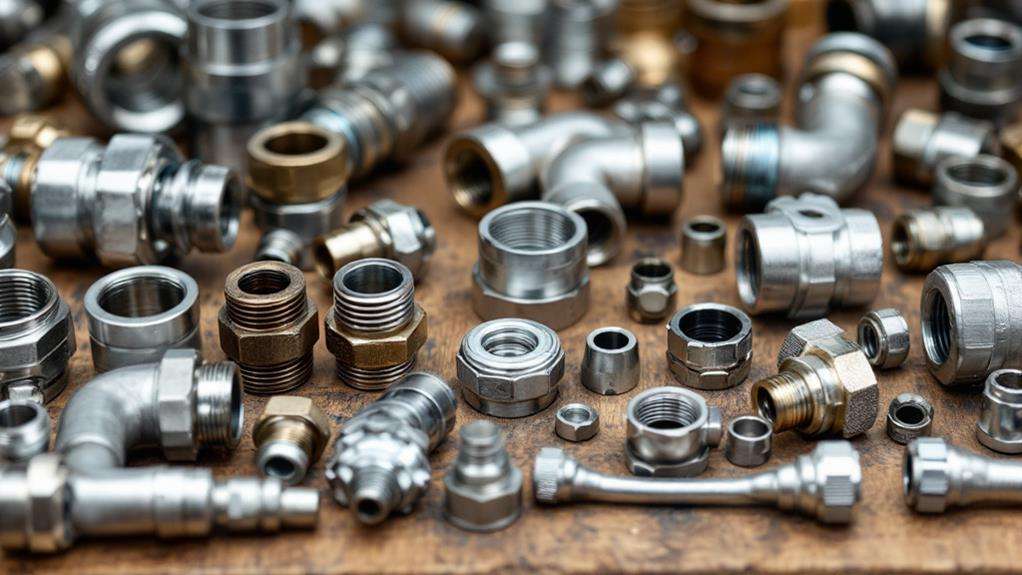

Types of Plumbing Adapters: Choosing the Right Fit

When choosing plumbing adapters, you'll encounter various types to fit your specific needs. Compression fittings offer versatility for different materials and sizes, while slip joint adapters are ideal for simple connections. Threaded adapters provide secure, leak-free joints, and push-fit connectors allow for quick installation. Solvent weld fittings create strong bonds for PVC pipes, and dielectric unions prevent galvanic corrosion. Coupling adapters join pipes of different sizes or types, while reducing adapters connect varying diameters. Material shift adapters bridge gaps between different pipe materials. Understanding these options will help you make informed decisions for your plumbing projects.

Compression Fittings

Versatility defines compression fittings in the world of plumbing adapters. These fittings allow you to connect pipes of different materials and sizes without soldering or threading. They're particularly useful for joining copper, plastic, and flexible pipes in both residential and commercial settings.

When you're working with compression fittings, you'll notice they consist of three main parts: the body, the compression nut, and the compression sleeve (also called a ferrule). The compression ratio is indispensable for ensuring a watertight seal. As you tighten the nut, it compresses the sleeve against the pipe, creating a secure connection.

You'll find compression fittings in various configurations, such as straight couplings, elbows, and tees. They're ideal for repairs and installations in tight spaces where traditional methods might be challenging. However, it is of the utmost importance to choose the right size and type for your specific application.

To install a compression fitting, you'll need to cut the pipe squarely, insert it into the fitting, and tighten the nut with a wrench. Be careful not to overtighten, as this can damage the fitting or pipe. With proper installation, compression fittings provide reliable, leak-free connections for your plumbing system.

Slip Joint Adapters

Slip joint adapters offer a simple yet effective solution for connecting pipes in your plumbing system. These versatile fittings allow you to join pipes of different sizes or materials without the need for soldering or complex tools. You'll find slip joint connections particularly useful in sink and drain assemblies, where they provide easy installation and maintenance.

One of the key advantages of slip joint adapters is their compatibility with different pipe materials. Whether you're working with PVC, copper, or brass pipes, you can use these adapters to create secure connections. They typically consist of a threaded nut, a rubber washer, and a tapered sleeve that fits snugly around the pipe.

To use a slip joint adapter, you'll slide the nut and washer onto the pipe, followed by the tapered sleeve. Then, you'll insert the pipe into the adapter's body and tighten the nut by hand or with pliers. This compression creates a watertight seal. Remember to check for leaks after installation and periodically tighten the nuts to maintain a secure connection. While slip joint adapters are not suitable for high-pressure applications, they're an excellent choice for many common household plumbing tasks.

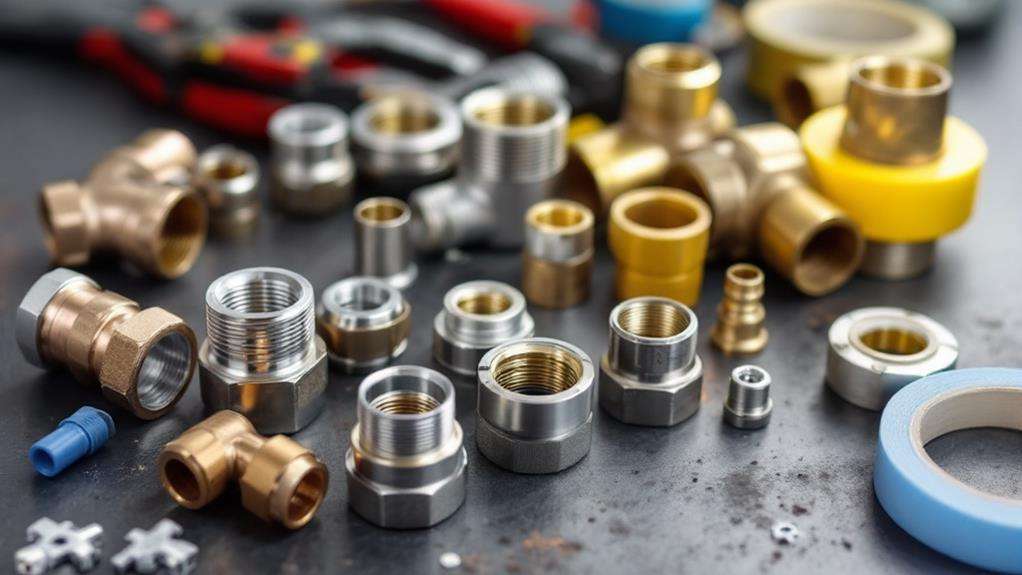

Threaded Adapters

Numerous plumbing projects rely on threaded adapters for creating secure, leak-free connections between pipes and fittings. These versatile components come in various sizes and materials, allowing you to join different types of pipes or change the direction of your plumbing system.

Threaded adapters feature either internal threads, external threads, or both. Internal threads are found on the inside of the adapter, allowing you to link it to pipes or fittings with external threads. Conversely, external threads are on the outside of the adapter, enabling connections to components with internal threads. Some adapters, known as male-to-female or female-to-male adapters, have both types of threads to facilitate shifts between different thread types.

When selecting threaded adapters, you'll need to consider factors such as pipe size, thread type (e.g., NPT, BSP), and material compatibility. Common materials include brass, PVC, and stainless steel, each suited for specific applications. It's pivotal to choose adapters that match your existing plumbing system and can withstand the pressure and temperature requirements of your project. Always use thread sealant or Teflon tape to safeguard a watertight seal when installing threaded adapters.

Push-Fit Connectors

Push-fit connectors' popularity in modern plumbing stems from their ease of use and quick installation. These innovative fittings allow you to connect pipes without soldering, glue, or special tools. You'll find various push fit connector types, including straight couplings, elbows, tees, and reducers, suitable for different plumbing scenarios.

When using push-fit installation techniques, remember these key points:

1. Cut your pipe cleanly and squarely for a proper seal
2. Deburr and clean the pipe end to prevent damage to the O-ring
3. Mark the insertion depth on the pipe to guarantee full connection
4. Push the pipe firmly into the fitting until it reaches the marked depth

Push-fit connectors work with multiple pipe materials, including copper, PEX, and CPVC. They're ideal for both repairs and new installations, especially in tight spaces where traditional tools are challenging to use. While they're slightly more expensive than conventional fittings, the time and labor savings often offset the cost. Always check local building codes before using push-fit connectors, as some jurisdictions may have restrictions on their use in certain applications.

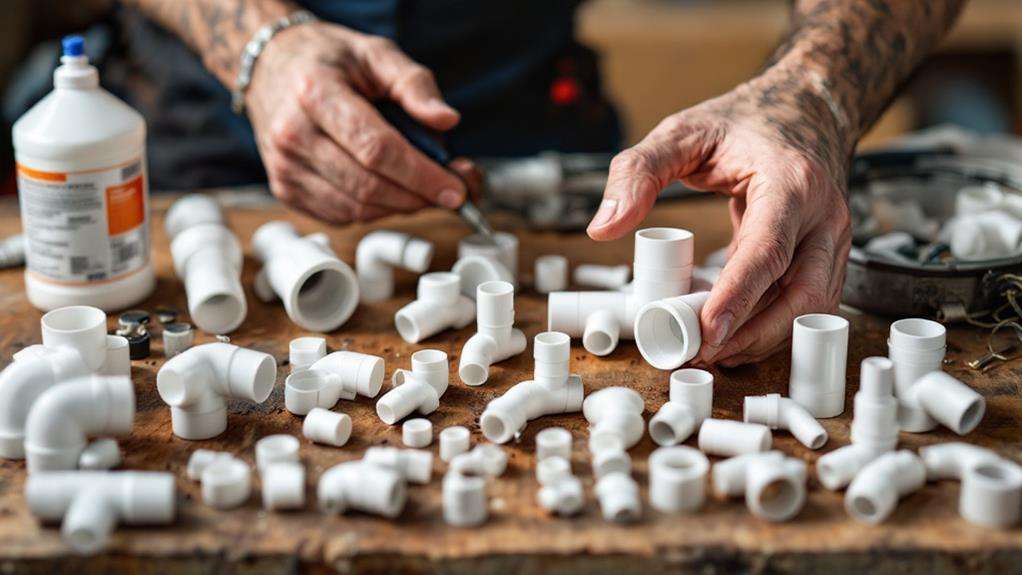

Solvent Weld Fittings

While push-fit connectors offer quick installation, solvent weld fittings provide a strong, permanent bond for PVC and CPVC pipes. These fittings are widely used in plumbing and irrigation systems due to their reliability and cost-effectiveness. To use solvent weld fittings, you'll need to follow a specific process that guarantees a secure connection.

Proper pipe preparation is essential for a successful solvent weld. You'll need to cut the pipe cleanly and remove any burrs or rough edges. Next, clean both the pipe and fitting surfaces with a suitable cleaner to remove dirt, grease, and moisture. Once cleaned, you'll apply a primer to soften the surfaces and prepare them for bonding.

The solvent application is the key step in creating a watertight seal. You'll use a special cement designed for PVC or CPVC, applying it evenly to both the pipe and fitting. Quickly insert the pipe into the fitting, giving it a quarter turn to distribute the cement. Hold the joint steady for about 30 seconds to allow initial bonding. Remember, full curing can take 24 hours or more, depending on temperature and humidity conditions.

Flange Adapters

Flange adapters bridge the gap between pipes and flanged components in plumbing systems. These versatile fittings allow you to connect different types of pipes or change pipe sizes seamlessly. When selecting flange adapters, you'll need to ponder factors such as material compatibility, pressure ratings, and specific application requirements.

1. Material options: Choose from various materials like PVC, cast iron, or stainless steel flange adapters to match your system's needs.
2. Size flexibility: Flange adapters come in a wide range of sizes to accommodate different pipe diameters.
3. Pressure ratings: Confirm the adapter can withstand your system's operating pressure.
4. Special configurations: Contemplate offset flange adapters for misaligned pipes or when space is limited.

Stainless steel flange adapters offer excellent corrosion resistance and durability, making them ideal for harsh environments or high-pressure applications. They're often used in industrial settings or where hygiene is pivotal. When installing flange adapters, always follow manufacturer guidelines and use appropriate gaskets to establish a proper seal. Remember to tighten bolts evenly to prevent leaks and maintain system integrity.

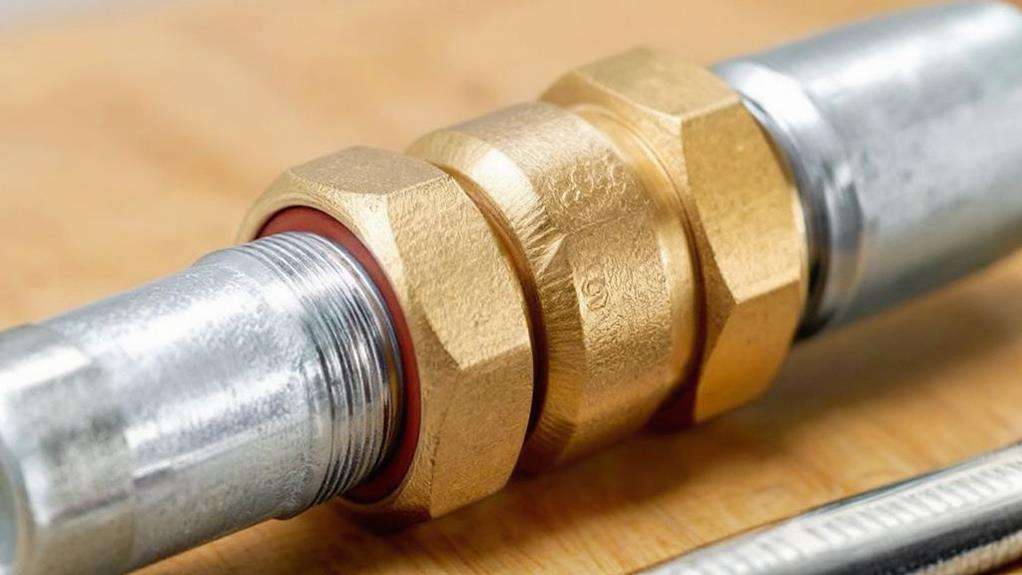

Dielectric Unions

Numerous plumbing systems require dielectric unions to safeguard against galvanic corrosion when joining dissimilar metals. These specialized fittings are critical for maintaining the integrity of your plumbing system, especially when connecting pipes made of different materials, such as copper and steel. Dielectric unions provide galvanic isolation, effectively separating the two metals and preventing the electrochemical reaction that leads to corrosion.

When you're working on a plumbing project involving different metal types, you'll want to use dielectric unions at the junction points. They consist of two separate sections – one for each metal – joined by a non-conductive material, usually plastic or rubber. This design guarantees that the metals don't come into direct contact, eliminating the risk of galvanic corrosion.

Dielectric unions are particularly important in water heater installations, where you'll often find copper pipes connecting to steel tanks. They're also commonly used in other applications where dissimilar metals meet, such as in HVAC systems or industrial piping. By incorporating these fittings into your plumbing work, you'll greatly extend the lifespan of your pipes and prevent costly leaks and repairs down the line.

Coupling Adapters

Coupling adapters are crucial fittings that allow you to join pipes or fittings of different sizes or types. These versatile components come in various materials, including PVC, copper, and brass, to suit different plumbing systems. When selecting a coupling adapter, consider the specific requirements of your project and the compatibility with existing pipes.

There are several types of coupling adapters you might encounter:

1. Straight couplings: These join pipes of the same diameter and material
2. Reducing couplings: Used to connect pipes of different diameters
3. Flexible couplings: Ideal for joining pipes that aren't perfectly aligned
4. Hybrid adapters: Connect pipes made of different materials

Flexible couplings are particularly useful in situations where there's potential for movement or vibration, as they can absorb some of this stress. They're often used in earthquake-prone areas or when connecting pipes to appliances that may shift slightly.

Hybrid adapters, on the other hand, are crucial when you need to bridge between different pipe materials. For example, you might use a copper-to-PVC adapter when updating part of an older plumbing system. Always use the correct type of coupling adapter for your specific plumbing needs to avoid leaks and maintain system integrity.

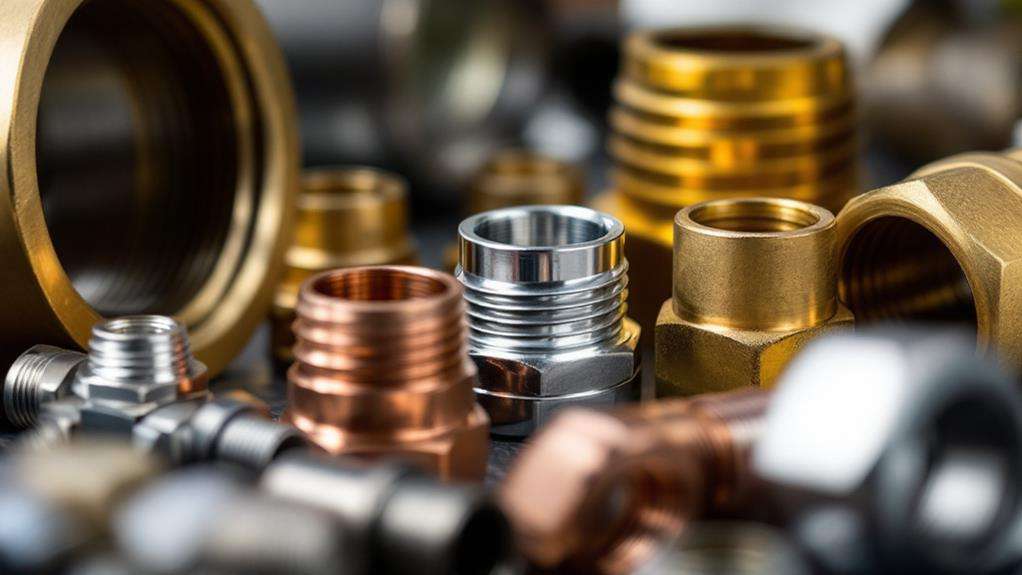

Reducing Adapters

While coupling adapters join pipes of various types, minimizing adapters specifically address size differences. These essential plumbing components allow you to connect pipes or fittings of different diameters, guaranteeing a smooth transition between sizes. You'll find two main types of minimizing adapters: minimizing couplings and minimizing bushings.

Minimizing couplings are designed to join two pipes of different sizes directly. They feature a larger opening on one end and a smaller one on the other, allowing for a seamless connection between pipes of varying diameters. You'll often use these when you need to transition from a larger main line to a smaller branch line.

Minimizing bushings, on the other hand, are typically used to adapt a fitting to a smaller pipe size. They're inserted into a larger fitting to create a smaller opening, effectively minimizing the size of the connection. You'll find these useful when you need to install a smaller valve or fixture onto a larger pipe.

When selecting minimizing adapters, it's vital to consider factors such as material compatibility, pressure ratings, and local plumbing codes. Always measure your pipes accurately and choose adapters that match your specific needs to ensure a proper, leak-free connection.

Material Transition Adapters

Material transition adapters play an essential role in connecting pipes made of different materials. They're pivotal when you need to join pipes that aren't naturally compatible, such as copper to PVC or steel to PEX. These adapters guarantee a secure, leak-free connection while addressing material compatibility and dimensional limitations.

When selecting a material transition adapter, consider these key factors:

1. Material compatibility: Confirm the adapter is designed to work with both pipe materials you're connecting.
2. Corrosion resistance: Choose adapters that won't degrade due to galvanic corrosion between dissimilar metals.
3. Pressure rating: Verify that the adapter can withstand the system's operating pressure.
4. Temperature range: Check that the adapter is suitable for the expected temperature fluctuations.

You'll find various types of material transition adapters, including threaded, compression, and push-fit options. Some common transitions include copper to PVC, steel to PEX, and brass to CPVC. Always follow local plumbing codes and manufacturer guidelines when installing these adapters. By choosing the right material transition adapter, you'll guarantee a reliable connection between different pipe materials, maintaining the integrity of your plumbing system.
