Plumbing Tees and Elbows: How to Choose and Use Them

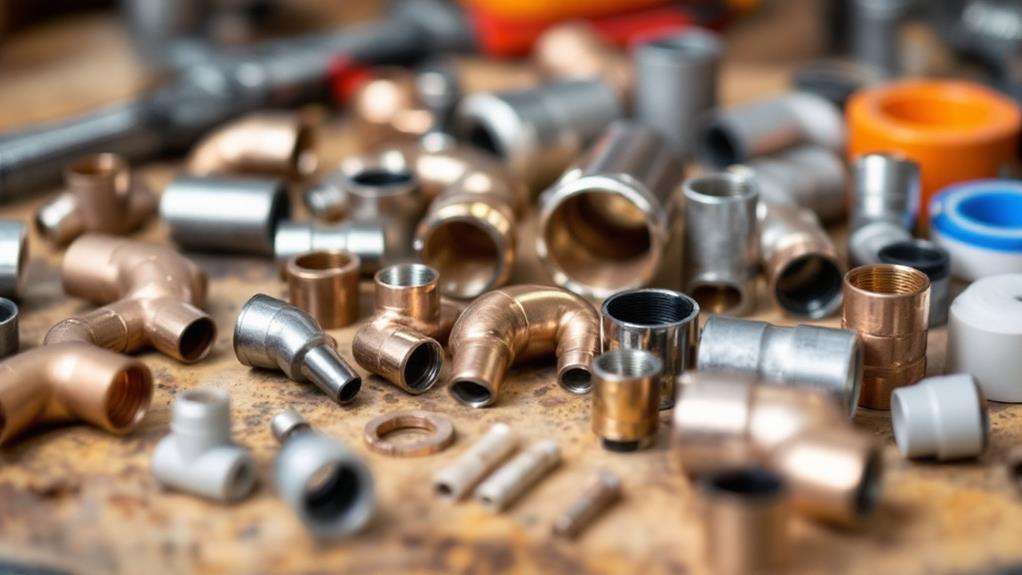

When choosing plumbing tees and elbows, consider the type of pipe you're working with and the specific requirements of your project. Tees come in threaded, soldered, slip, push-fit, and compression varieties, while elbows are available in 90-degree, 45-degree, and reducing options. Material selection is vital, with copper, PVC, PEX, and brass fittings each having unique properties. Confirm you match fitting size to pipe diameter and consider pressure ratings. For installation, prepare pipe ends, use appropriate sealants, and select the right tools. Always conduct leak tests before finalizing your work. By becoming adept at these fittings, you'll be well-equipped to tackle a wide range of plumbing challenges.
Types of Plumbing Tees
Envision a plumber's toolbox filled with essential fittings. Among these, you'll find various types of plumbing tees, each designed for specific applications. Tees are T-shaped fittings that allow you to branch off a pipe in two directions, making them pivotal for creating complex plumbing systems.
One common type you'll encounter is the threaded tee. These tees have female threads on all three openings, allowing for easy connection to threaded pipes or fittings. They're versatile and can be used in both water and gas lines. You'll find them in materials like PVC, brass, and galvanized steel.
Soldered tees, on the other hand, are designed for use with copper pipes. They require soldering to create a watertight seal, making them ideal for water supply lines. These tees come in various sizes and configurations, including reducing tees that allow for connections between pipes of different diameters.
Other types of tees include slip tees for PVC pipes, push-fit tees for quick connections, and compression tees for joining pipes without soldering. When selecting a tee, consider the material of your pipes, the pressure requirements, and the specific application to guarantee a proper fit and long-lasting performance.
Understanding Plumbing Elbows
While tees are pivotal for branching pipes, elbows play an equally important role in plumbing systems. You'll find elbows in various angles, with 90-degree and 45-degree elbows being the most common. These fittings allow you to change the direction of pipes smoothly, reducing flow restrictions and pressure loss.
90-degree elbows, also called "quarter bends," are used for sharp turns in pipe runs. They're ideal for corners and vertical-to-horizontal transformations. On the other hand, 45-degree elbows provide a gentler curve, which is better for gradual direction changes and can help minimize turbulence in the water flow.
You'll also encounter reducing elbows, which change both the direction and pipe size simultaneously. These are particularly useful when you need to connect pipes of different diameters while making a turn.
When selecting elbows, consider the material (PVC, copper, or brass), pressure rating, and connection type (threaded, slip, or push-fit). Always choose elbows that match your pipe material and size to establish proper fit and function. Remember, using the right elbow can noticeably impact your plumbing system's efficiency and longevity.

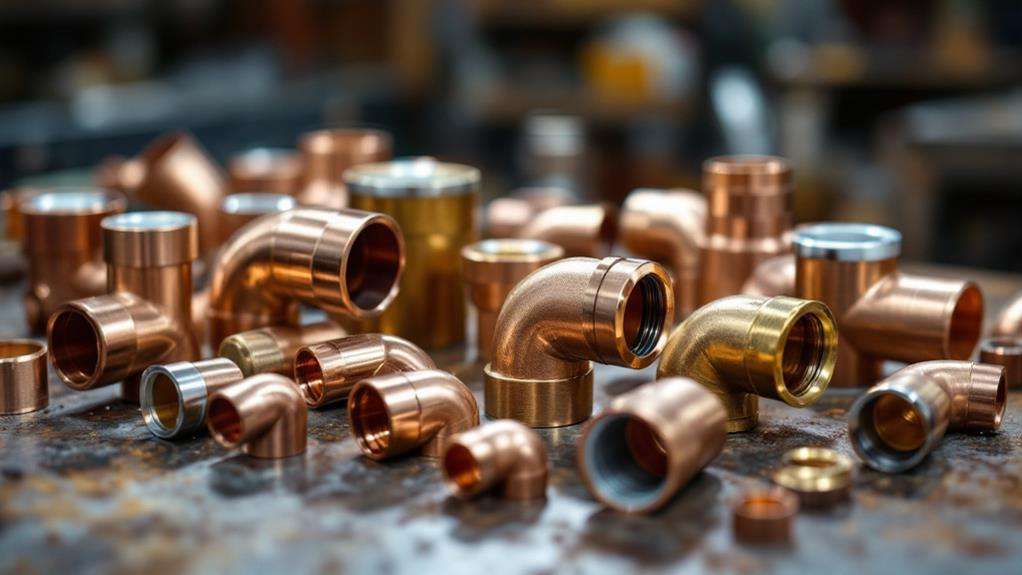

Material Considerations
Plumbing fittings' material choice plays an essential role in your system's performance and longevity. When selecting tees and elbows, you'll need to consider the material composition of your pipes and the specific requirements of your project. Common materials include copper, PVC, PEX, and brass, each with its own strengths and limitations.
Copper fittings are durable and resistant to corrosion, making them ideal for both hot and cold water lines. PVC is lightweight, affordable, and perfect for cold water applications, but it's not suitable for hot water due to its thermal expansion factors. PEX fittings are flexible and easy to install, with excellent resistance to freezing and bursting. Brass fittings are strong and long-lasting, often used in areas requiring high heat resistance.
Consider the environment where you'll install the fittings. For example, if you're working on outdoor plumbing, you'll want materials that can withstand temperature fluctuations and UV exposure. Additionally, think about the water quality in your area, as some materials may be more susceptible to certain types of corrosion. By carefully considering material composition and thermal expansion factors, you'll guarantee your plumbing system performs flawlessly for years to come.
Sizing and Compatibility
A vital aspect of selecting plumbing tees and elbows is guaranteeing proper sizing and compatibility. You'll need to match the fitting size to your existing pipes and examine the flow rate requirements of your plumbing system. Measure the diameter of your pipes accurately and choose fittings that correspond to these measurements. Remember, mixing different pipe sizes can lead to leaks and reduced efficiency.
When selecting fittings, pay attention to the pressure rating significance. Each fitting has a maximum pressure it can withstand, so choose ones that can manage your system's pressure demands. You'll also want to guarantee compatibility between the fitting material and your pipes. For instance, copper fittings work well with copper pipes, while PVC fittings are best for PVC pipes.
Don't forget to inspect the specific requirements of your plumbing project. Tees are ideal for branching off a main line, while elbows are perfect for changing direction. Choose the appropriate angle (45 or 90 degrees) based on your needs. By carefully examining sizing and compatibility, you'll guarantee a tight, efficient, and long-lasting plumbing system.

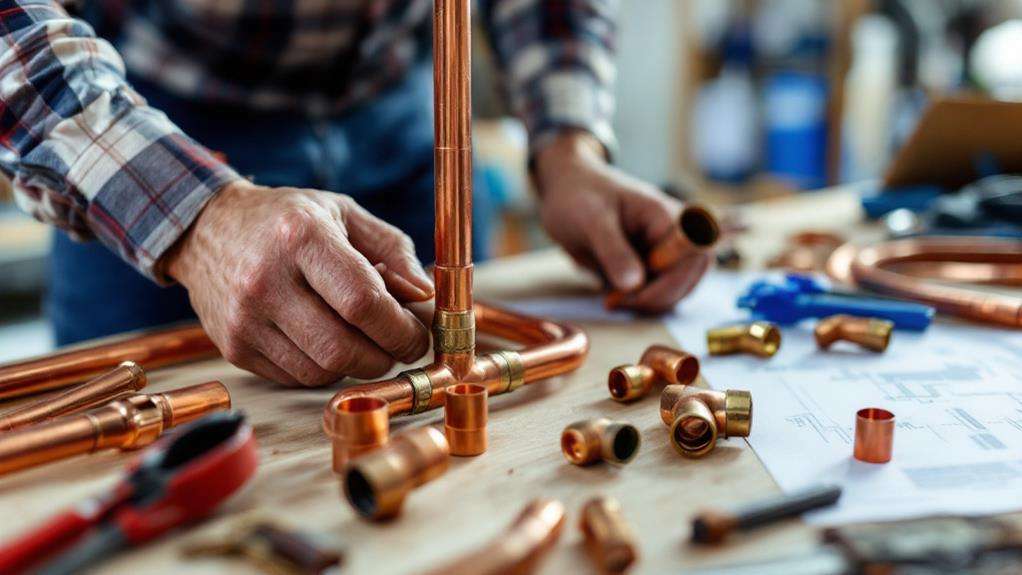

Installation Best Practices
Success in plumbing projects hinges on proper installation of tees and elbows. To guarantee a leak-free and durable connection, you'll need to follow best practices throughout the installation process. Start by cleaning and preparing the pipe ends, removing any burrs or debris that could compromise the seal. Apply an appropriate pipe sealant or thread tape, depending on the fitting type and material.
When connecting fittings, use the right tools for the job. Proper tool selection is vital for achieving a secure fit without damaging the components. For threaded fittings, use a pipe wrench or adjustable wrench, taking care not to overtighten. For soldered connections, employ a propane torch and follow manufacturer guidelines for heating and cooling times.
Always prioritize job site safety by wearing protective gear, such as gloves and safety glasses. Guarantee proper ventilation when working with solvents or soldering materials. Test your connections for leaks before closing up walls or completing the project. By following these installation best practices, you'll maximize the performance and longevity of your plumbing system while minimizing the risk of future problems.
