How to Install a Backup Pump for Your Sump Pump System
To install a backup pump for your sump pump system, start by choosing between battery-powered or water-powered options. Position the backup pump slightly higher than your primary pump in the sump pit. Connect the backup pump's discharge pipe to the main pump's discharge line. For battery-powered pumps, place a deep-cycle marine battery in a protective box nearby and connect it to the pump's control unit. Test your installation by unplugging the primary pump and filling the pit with water to verify the backup activates. Regular maintenance and testing are indispensable for ideal performance. With proper installation, you'll gain peace of mind and protection against potential flooding disasters.
Understanding Sump Pump Systems
Basements and crawlspaces can be vulnerable to flooding, which is why sump pump systems are vital for many homeowners. If you've got an underground level in your home, you'll want to contemplate installing a sump pump to safeguard against water damage.
A primary sump pump sits in a basin, or sump pit, that collects groundwater and rainwater. It then pumps this water away from your home, preventing moisture buildup and potential flooding. However, relying on a single pump can be risky. That's where a backup sump pump comes in.
A backup pump acts as your Plan B, kicking in if your primary pump fails due to power outages or malfunctions. It's also useful for handling excess water that your main pump can't manage. You've got two main options for backup pumps: battery-powered or water-powered.
Battery-powered backups can move up to 2,000 gallons of water per hour and work during power outages. Water-powered pumps use municipal water to remove water, with a 2:1 ratio. Whichever type you choose, it's essential to have a professional install your backup pump to guarantee proper operation and safety. They'll typically use PVC piping to connect the backup to your existing system.
Types of Backup Sump Pumps
When it comes to backup sump pumps, you've got two main options: battery-powered and water-powered systems. Battery-powered backup pumps run on deep-cycle marine batteries and can move up to 2,000 gallons of water per hour. These backup pumps provide an extra layer of protection against basement flooding during power outages or if your primary pump fails. They'll automatically kick in when needed, drawing power from the battery to remove water from the pit.
Water-powered backup pumps, on the other hand, operate using municipal water pressure. They're particularly advantageous during multi-day power outages, as they can remove 2 gallons of water for every 1 gallon of municipal water used. This means they'll keep working as long as your water supply remains active.
When choosing between backup sump pumps, consider factors like pumping capacity, battery lifespan, and compatibility with your existing sump pump system. Whether you opt for battery backups or water-powered options, it's important to have a professional install your backup pump. A licensed plumber can guarantee proper installation, operation, and safety of your new system, giving you peace of mind during severe weather events or unexpected power failures.
Choosing the Right Backup Pump
Now that you understand the types of backup sump pumps available, it's time to select the right one for your home. Consider these factors when choosing between a battery-operated backup sump pump and a water-powered model:
- Pumping capacity: Battery-powered pumps can move up to 2,000 gallons per hour, while water-powered pumps remove 2 gallons for every 1 gallon of municipal water used.
- Power source: Battery-operated pumps require a deep-cycle marine battery, while water-powered pumps rely on municipal water pressure.
- Duration: Water-powered pumps are advantageous during multi-day power outages, as they don't rely on battery life.
- Installation: Both types can be installed alongside your existing primary pump and connected to the existing discharge pipe.
When selecting a backup pump, consider the water volume you need to handle during storms or extended power outages. Confirm the pump's capacity matches your home's needs. Remember, backup pumps provide an extra layer of protection against water damage by continuing operation even when your primary pump fails. Whether you choose a battery-operated or water-powered model, installing a backup sump pump will give you peace of mind during power outages and severe weather events.
Preparing for Installation
Before diving into the installation process, you'll need to gather the necessary tools and materials. Start by making sure you have a backup sump pump, PVC pipe, check valve, Teflon tape, and a battery backup system. You'll also need basic tools like a drill, screwdriver, and pipe cutter.
Next, inspect your existing primary sump pump setup. Identify the discharge pipe and determine where you'll install the backup pump. It's important to position the backup pump slightly higher than the primary pump to prevent unnecessary activation.
Clear the work area and shut off power to the primary sump pump. Drain any standing water in the pit to create a dry workspace. Measure and mark the spots where you'll cut into the existing discharge pipe to add the check valve and tee fitting for the backup pump.
Prepare the new PVC pipe by cutting it to the appropriate lengths and dry-fitting the components. This will help you visualize the final setup and make any necessary adjustments before permanent installation. Remember, the backup sump pump installation provides an extra layer of protection against flooding, so take your time to properly position and ready everything for installation.

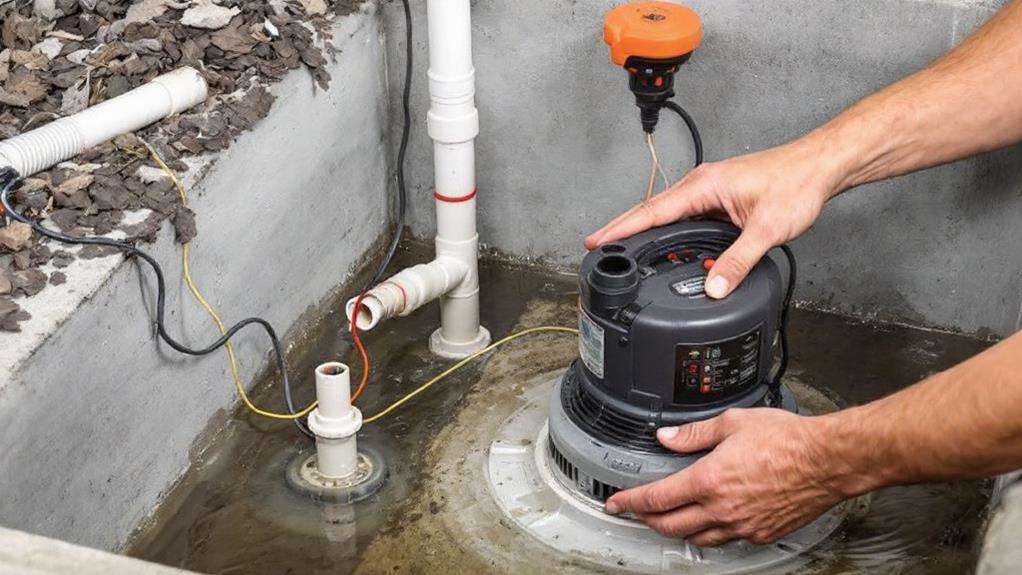

Step-by-Step Installation Guide
The step-by-step installation process for your backup sump pump begins with securing the pump in the sump pit. To install a battery backup system that provides protection during power outages, follow these key steps:
- Position the backup sump pump in the pit, placing it slightly higher than the primary pump.
- Connect the discharge pipe to the backup pump, joining it with the main pump's discharge line.
- Place the deep-cycle marine battery in a protective box on a nearby shelf, away from potential water damage.
- Plug the battery into the pump's control unit, following the manufacturer's guidelines.
The installation process requires careful attention to detail and proper connections to confirm the backup power system functions correctly. While these steps provide a general overview, professional installation by a licensed plumber is recommended for maximum safety and performance.
Once installed, your backup sump pump provides peace of mind during power outages or primary pump failures. Remember to maintain your system regularly, including checking battery water levels, cleaning terminals, and testing the backup pump every three months. This routine will help keep your backup sump pump ready to prevent flooding when you need it most.
Testing Your Backup System
How can you be sure your backup sump pump system will work when you need it most? Regular testing is indispensable to guarantee your protection against flooding remains intact. To test your backup system, start by unplugging your primary pump to simulate a power outage or pump failure.
Next, slowly fill your sump pit with water using a garden hose or buckets. As the water level rises, observe whether your backup pump activates at the appropriate level. If you've installed a battery-powered pump, make sure it turns on and effectively removes water from the pit. For water-powered sump pumps, verify that the water supply valve opens and the pump begins operating.
During the test, check that the backup pump's discharge line is functioning correctly and water is being expelled outside your home. Also, listen for any unusual noises or vibrations that might indicate a problem. If you have a battery-powered system, test the battery's charge and replace it if necessary.
Perform this test at least twice a year, ideally before rainy seasons. By regularly testing your backup system, you'll gain peace of mind knowing it'll work when your primary pump fails.

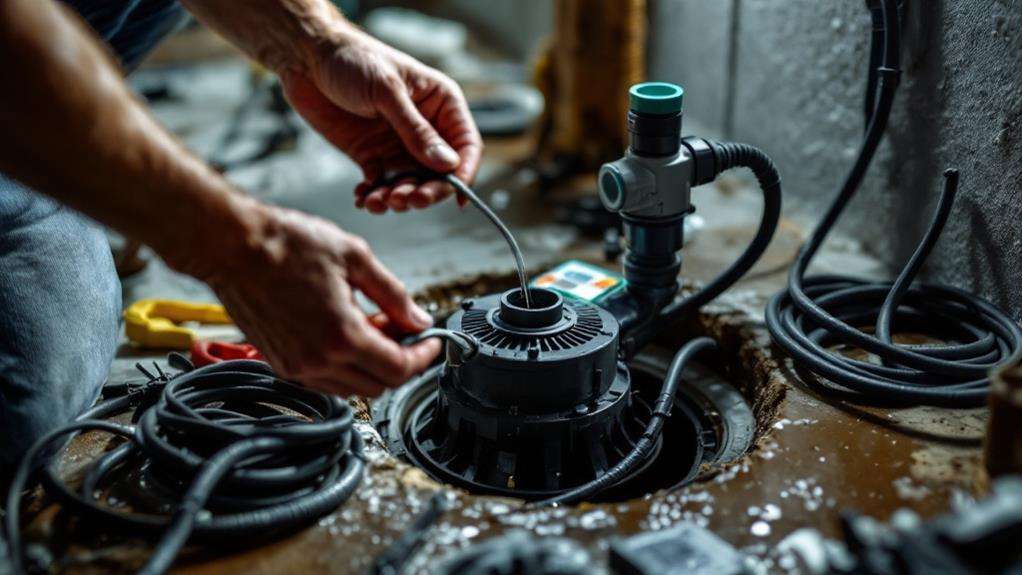

Maintenance and Care Tips
Maintaining your backup sump pump system is essential for its long-term reliability. Regular care guarantees it's ready to help when your primary pump can't prevent water from entering your basement. As part of your DIY Smarts projects, incorporate these maintenance tips from the latest This Old House trusted tips:
- Check the battery: Inspect your backup battery monthly, ensuring it's fully charged and free from corrosion. Keep a nearby shelf clear for easy access during inspections.
- Test the system: Run a test cycle every three months to verify the backup pump activates correctly and discharges water efficiently.
- Clean the pit: Annually remove debris from the sump pit to prevent clogs and maintain maximal performance.
- Replace components: Follow manufacturer guidelines for replacing parts, typically every 2-5 years, depending on usage.
Don't forget to lubricate moving parts and tighten any loose connections during your maintenance routine. Keep spare parts on hand for quick repairs. By following these steps, you'll guarantee your backup sump pump system remains in top condition, ready to protect your home from potential flooding when you need it most.
Troubleshooting Common Issues
Despite proper maintenance, backup sump pump systems can occasionally encounter issues. If your pump fails to start, first check the power cord for any damage or loose connections. Guarantee it's properly plugged in and the circuit breaker hasn't tripped. If the pump runs but doesn't remove water, inspect the stainless steel hose for kinks or blockages. Ensure the protective plastic covering has been removed from the new pump's intake.
When installing, use PVC pipes and fittings to create a straight discharge line. Avoid sharp bends that can reduce water flow. If you hear unusual noises, check for debris in the pump or loose mounting hardware. For float switch problems, verify it's not obstructed and can move freely.
Old House news suggests that battery backup systems may fail due to corroded terminals or a depleted battery. Clean the terminals and test the battery regularly. If water seeps around the side of the new pump, check the seal and tighten any loose fittings.
For persistent issues, consult the manufacturer's troubleshooting guide or seek advice from experts. Many homeowners successfully tackle these projects, but don't hesitate to call a professional if you're unsure.

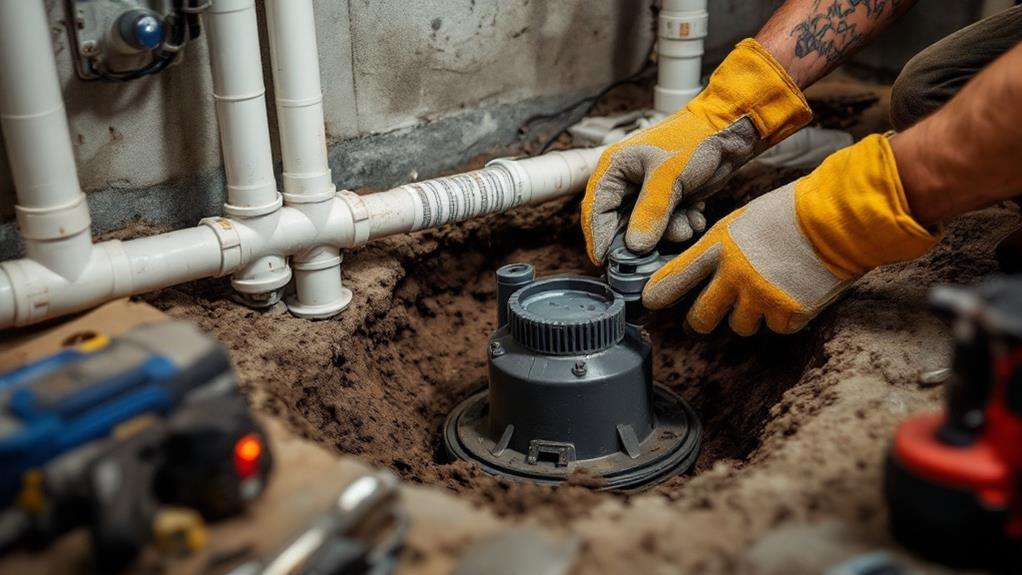

Professional Installation Considerations
While many homeowners can successfully install a backup sump pump, some situations call for professional knowledge. When considering professional installation for your backup pump and sump pump system, it is crucial to understand the benefits and requirements involved.
Professional installers bring expertise in:
- Electrical wiring: They guarantee proper connections and compliance with local codes.
- Plumbing connections: They can integrate the backup pump seamlessly into your existing system.
- Permits: They're familiar with local regulations and can obtain necessary permits.
- Safety considerations: They're trained to handle potential hazards and confirm proper ventilation.
If you're uncomfortable working with electrical components or plumbing, it's best to hire a professional. They'll assess your home's specific needs, recommend the right backup pump, and make sure it's correctly installed. Professional installation often comes with warranties and guarantees, providing peace of mind.
