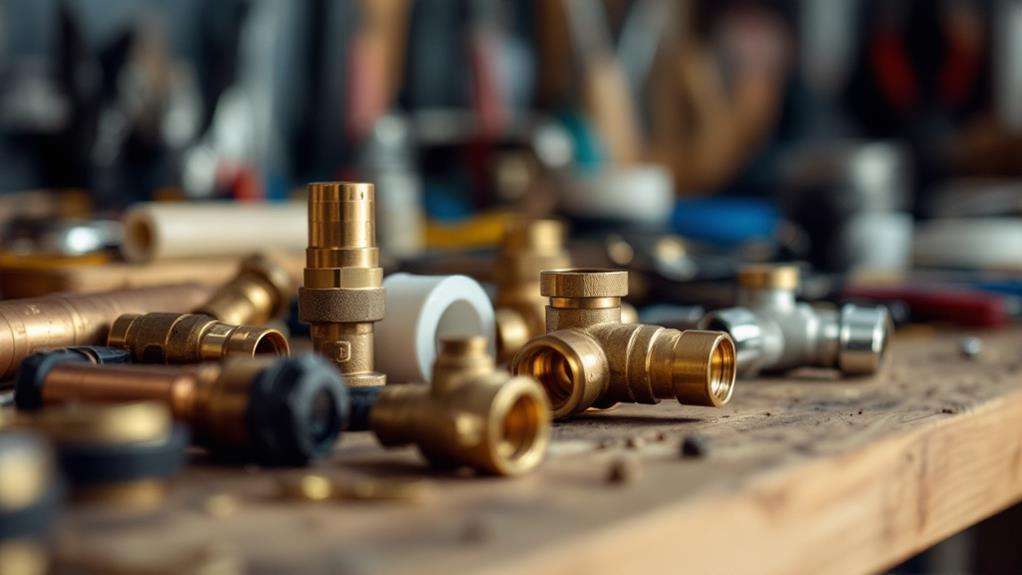

Essential Connectors for Home Plumbing Projects

Essential connectors for home plumbing projects include compression fittings, threaded connectors, push-to-connect fittings, slip joints, solvent weld couplings, flare fittings, adapters, reducers, elbows, tees, unions, and flanges. You'll need these to join pipes, change directions, and connect different materials. Compression and push-to-connect fittings offer easy installation, while threaded connectors and solvent weld couplings provide secure connections. Slip joints are great for under-sink work, and flare fittings excel in high-pressure situations. Adapters and reducers help bridge between sizes and materials. By understanding these connectors, you'll be well-equipped to tackle various plumbing tasks with confidence.

Compression Fittings

Plumbers and DIY enthusiasts alike rely on compression fittings for their versatility and ease of use. These fittings are designed to create watertight seals without soldering, making them ideal for various plumbing applications. You'll find compression fittings particularly useful when working with copper, plastic, or chromed pipes.

To use a compression fitting, you'll need three components: the body, the compression nut, and the compression ring (or ferrule). The body threads onto the pipe, while the nut compresses the ring against the pipe, guaranteeing a secure seal. Brass compression fittings are popular due to their durability and resistance to corrosion.

One of the main advantages of compression fittings is their ability to create swivel connections. This feature allows for easier installation and maintenance, especially in tight spaces. You can also disassemble and reuse these fittings, which is particularly helpful when making repairs or modifications to your plumbing system.

When installing compression fittings, ensure the pipe is cut squarely and free from burrs. Slide the nut and ring onto the pipe before inserting it into the fitting body. Tighten the nut by hand, then use a wrench to give it an additional quarter to half turn.

Threaded Connectors

Connecting pipes and fittings often involves the use of threaded connectors. These versatile components come in various sizes and materials, allowing you to join different types of pipes securely. When working with threaded connectors, it's paramount to understand the different pipe thread types, such as NPT (National Pipe Thread) and BSP (British Standard Pipe).

To confirm a leak-free connection, you'll need to apply a thread sealant. There are several thread sealant options available, including Teflon tape, pipe dope, and anaerobic sealants. Teflon tape is easy to use and works well for most applications. Simply wrap it around the male threads in a clockwise direction before assembly. Pipe dope, a paste-like substance, is another popular choice that provides excellent sealing properties. For more demanding applications, anaerobic sealants offer superior strength and chemical resistance.

When assembling threaded connections, be careful not to overtighten them, as this can damage the threads or cause leaks. Use a pipe wrench or adjustable wrench to tighten the connection, but stop when you feel resistance. If you're unsure about the proper tightness, consult a plumbing guide or seek professional advice to avoid potential issues.

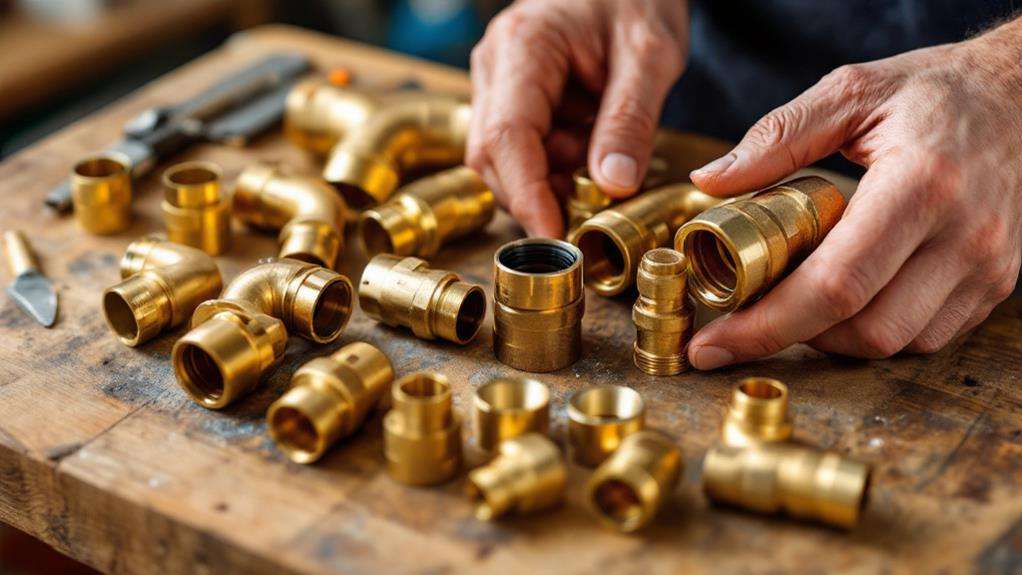

Push-to-Connect Fittings

While threaded connectors have long been a staple in plumbing, push-to-connect fittings offer a faster and easier alternative for many applications. These innovative connectors allow you to join pipes without soldering, threading, or using pipe clamps. You simply push the pipe into the fitting, and it securely locks in place.

Push-to-connect fittings work with various pipe materials, including copper, PEX, and CPVC. They consist of a plastic or brass body with a metal grip ring and an O-ring seal. When you insert the pipe, the grip ring's teeth bite into it, creating a tight hold, while the O-ring forms a watertight seal.

Unlike traditional barb fittings, push-to-connect fittings don't require special tools or skills to install. They're ideal for tight spaces where using a wrench or torch would be difficult. You can even disconnect and reuse them, making them perfect for temporary repairs or experimental setups.

However, it's pivotal to guarantee the pipe end is cut square and free from burrs. Always follow the manufacturer's instructions for proper installation and use in your specific plumbing project.

Slip Joints

You've likely encountered slip joints in your home's plumbing without even realizing it. These versatile connectors are commonly found under sinks, connecting drains to traps, and in other areas where flexibility is needed. Slip joints consist of a threaded nut, a washer, and a tapered end that fits into a corresponding pipe or fitting.

One of the main advantages of slip joints is their ease of installation and removal. You don't need special tools or soldering skills to work with them. Simply hand-tighten the nut, and you're good to go. Flexible slip joints offer even more versatility, allowing for slight misalignments in your plumbing.

Adjustable slip fittings are particularly useful when dealing with odd-sized pipes or making repairs in tight spaces. They can accommodate slight variations in pipe diameter, making them a go-to solution for many DIY plumbing projects. However, it's important to guarantee proper tightening to prevent leaks. While slip joints are generally reliable, they may not be suitable for high-pressure applications or areas prone to frequent movement. In these cases, consider alternative connection methods for a more secure seal.

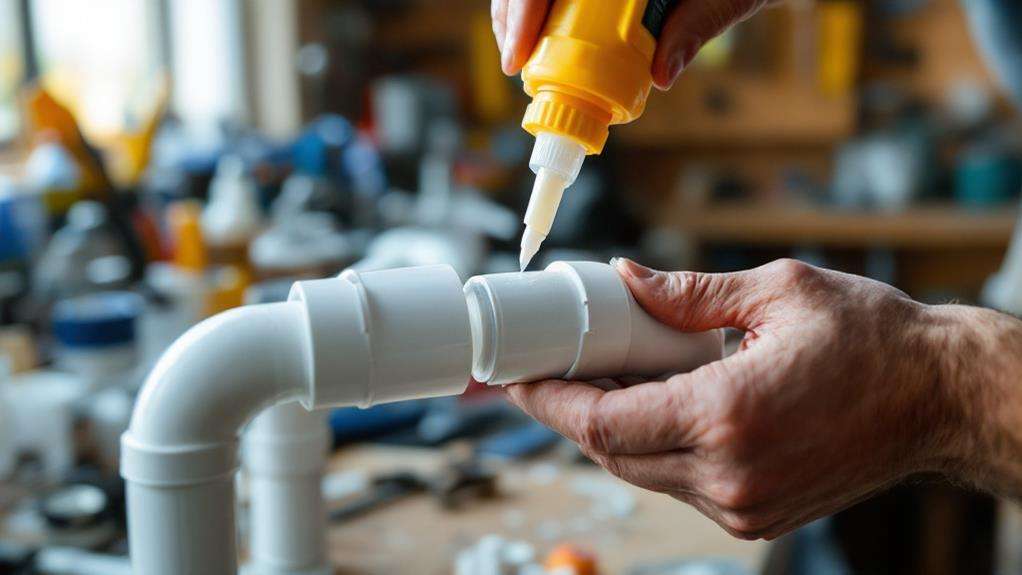

Solvent Weld Couplings

Solvent weld couplings are the go-to solution for creating permanent, watertight connections in PVC and ABS piping systems. They're essential for joining pipes of the same diameter, guaranteeing a leak-free seal that'll last for years. Unlike slip couplings or slip unions, which allow for easy disassembly, solvent weld couplings create a bond that's virtually unbreakable.

To use solvent weld couplings, you'll need to apply a specialized solvent cement to both the coupling and the pipe ends. This cement chemically melts the surfaces, allowing them to fuse together as they cure. It's vital to choose the right cement for your specific pipe material and follow the manufacturer's instructions carefully.

When working with solvent weld couplings, make sure your pipes are clean, dry, and properly aligned. Apply the cement evenly and quickly, as it sets fast. Once you've joined the pipes, hold them in place for a few seconds to confirm a proper bond. Allow the connection to cure fully before pressurizing the system. Remember, these connections are permanent, so double-check your measurements and alignment before cementing.

Flare Fittings

Plumbers and DIY enthusiasts often turn to flare fittings for creating secure, leak-proof connections in copper and soft metal tubing. These fittings are particularly useful when joining pipes that may experience vibration or movement, making them ideal for appliance connections and automotive applications.

To use flare fittings, you'll need a flaring tool to create a cone-shaped end on your tubing. This flared end fits snugly against the fitting's tapered surface, forming a tight seal when compressed. The process involves sliding a nut onto the tube, followed by a brass ferrule fitting, before flaring the tube's end.

Flare fittings are commonly used with flexible hoses, such as those found in refrigeration systems or fuel lines. They're also popular for connecting gas appliances to supply lines. When working with these fittings, it's essential to guarantee the flare is smooth and free from cracks or imperfections to prevent leaks.

While flare fittings provide excellent sealing capabilities, they can be more challenging to install than some other fitting types. However, with practice and the right tools, you'll find them to be a trustworthy solution for many plumbing projects.

Adapters and Reducers

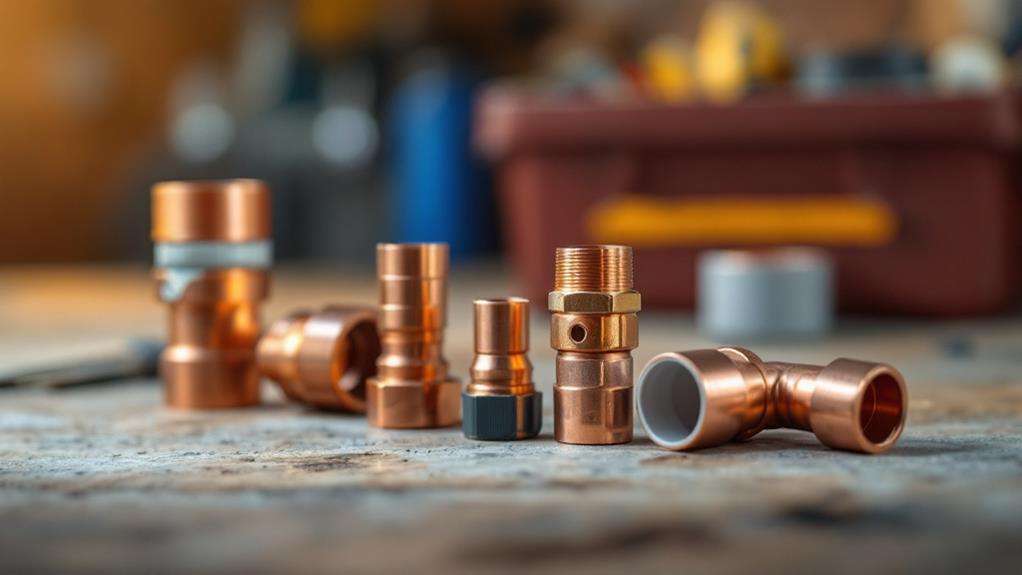

connecting components through transformation

The unsung heroes of plumbing, adapters and reducers play an essential role in connecting pipes of different sizes or materials. You'll often encounter situations where you need to join pipes with different diameters or move between various materials like copper, PVC, or galvanized steel. That's where these versatile fittings come in handy.

Adapters allow you to connect pipes of different sizes or threading types. You'll find male and female adapters, which can be used to change the gender of a pipe end. Reducers, as the name suggests, help you move from a larger pipe to a smaller one. They come in various styles, including bell reducers and bushings.

When connecting dissimilar metals, you'll want to use dielectric unions to prevent galvanic corrosion. These specialized fittings have an insulating barrier that separates the two metals, ensuring a long-lasting connection.

Transitional adapters are particularly useful when you're working with different pipe materials. They allow you to seamlessly connect, for instance, PVC to copper or steel to PEX. By using the right adapters and reducers, you can create a durable and efficient plumbing system that meets your specific needs.

Elbows and Tees

Countless plumbing projects require changes in direction or branching of pipes, and that's where elbows and tees come into play. Elbows are fittings that allow you to change the direction of pipes, typically at right angle bends. You'll find them in various angles, with 45-degree and 90-degree elbows being the most common. For tighter turns, you can use double elbows, which provide a smoother flow and reduce the risk of clogs.

Tees, on the other hand, are T-shaped fittings that enable you to branch off a main pipe into two directions. They're essential for creating supply lines to multiple fixtures or appliances. When selecting elbows and tees, consider the material of your pipes and choose compatible fittings. You'll find options in PVC, copper, and brass, among others.

To install elbows and tees, you'll need to measure and cut your pipes accurately. Apply appropriate sealant or solder, depending on the material, to guarantee a watertight connection. Remember to support the pipes properly to prevent stress on the joints. By conquering the use of elbows and tees, you'll be able to tackle a wide range of plumbing tasks with confidence.

Unions and Flanges

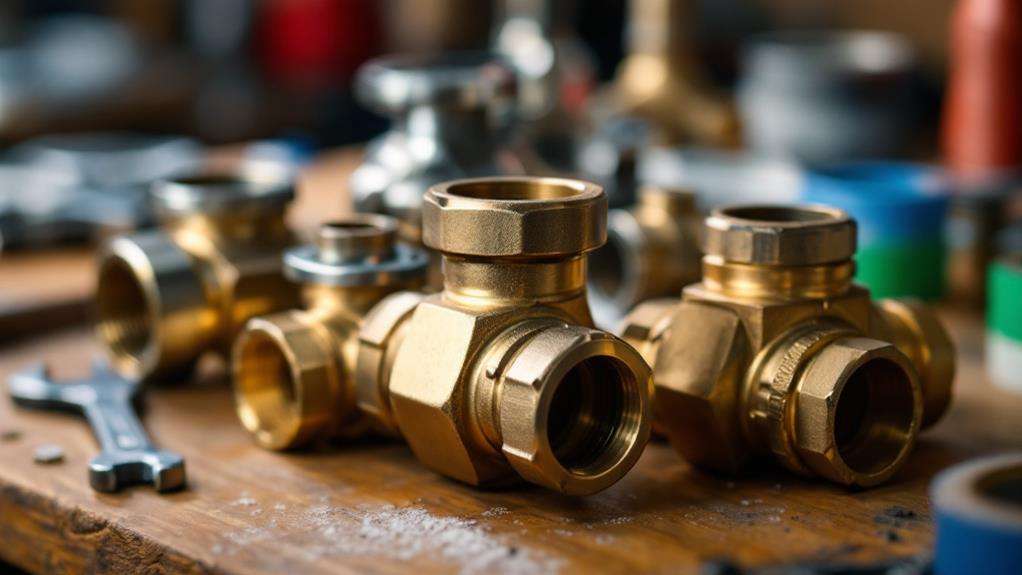

connections seals attachments interfaces

Many DIY plumbing projects require the use of unions and flanges, two essential components for creating secure and removable connections between pipes. Unions allow you to join pipes without soldering or threading, making future repairs or replacements much easier. They're particularly useful when connecting pipes of different materials, such as copper to galvanized steel. In these cases, you'll want to use dielectric unions to prevent corrosion caused by electrolysis.

Flanges, on the other hand, are used to connect pipes to equipment or to join pipe sections. They're typically bolted together, creating a strong, leak-proof seal. Corrugated flanges are a popular choice for their flexibility and ability to absorb vibrations.

When working with unions and flanges, keep these key points in mind:
