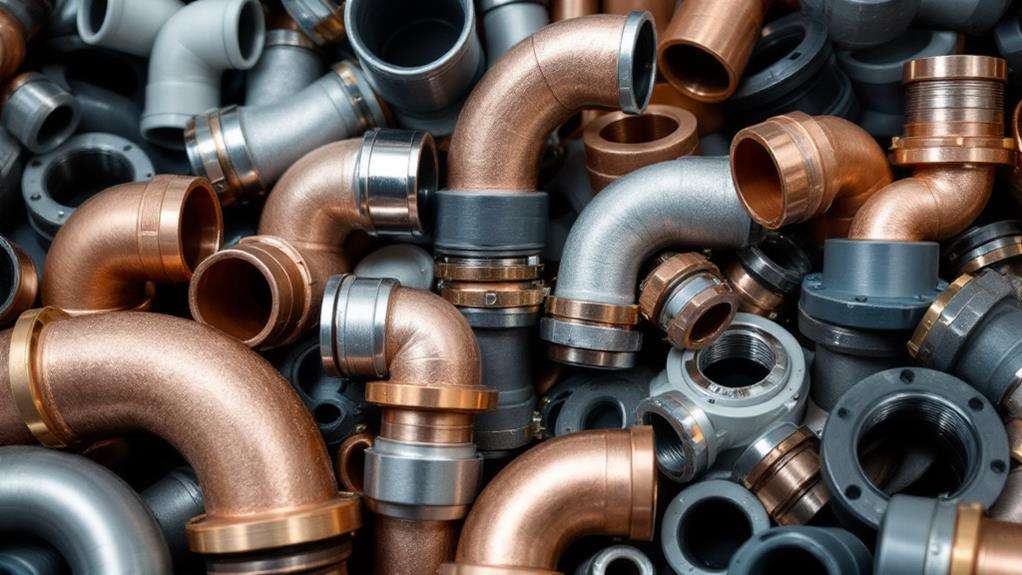

What Are the Different Types of Pipe Connectors?

Pipe connectors come in various types to suit different plumbing and industrial needs. You'll find couplings for joining pipes, elbows for changing direction, and tees for branching. Unions allow for easy disassembly, while reducers help interface between pipe sizes. Adapters connect pipes of different materials or sizes, and flanges provide strong, removable connections. Caps and plugs seal off pipe ends, and compression fittings offer versatile, reusable connections. Each type serves a specific purpose in creating efficient and reliable piping systems. Understanding these connectors will help you tackle any plumbing project with confidence.

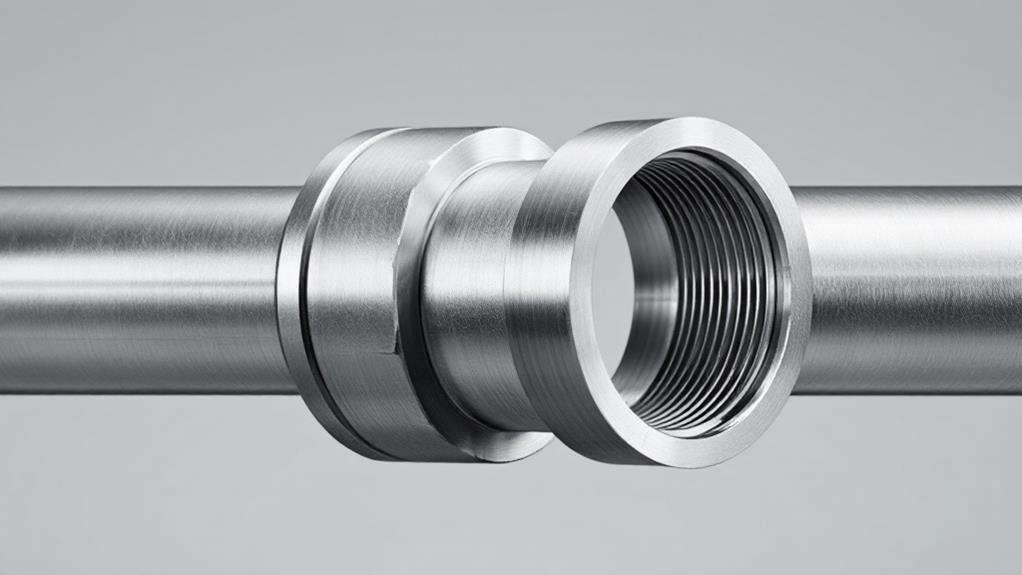

Couplings

Pipe couplings are essential connectors that join two lengths of pipe together. They're available in various materials, including steel, copper, and PVC, to match different pipe types. When selecting a coupling, you'll need to consider factors like pipe material, size, and the intended application.

One common type you'll encounter is compression couplings. These versatile connectors don't require soldering or threading, making them ideal for quick repairs or installations. They work by compressing a rubber seal around the pipe ends, creating a watertight connection. You'll find compression couplings particularly useful in tight spaces or when working with different pipe materials.

Another popular option is grooved couplings. These connectors use a mechanical gripping method, where grooves are cut or rolled into the pipe ends. The coupling then clamps onto these grooves, creating a secure joint. Grooved couplings offer flexibility in pipe alignment and can absorb vibration, making them suitable for various industrial applications.

When installing couplings, guarantee proper alignment and follow manufacturer guidelines for tightening. Regular inspection of your pipe connections will help maintain system integrity and prevent leaks.

Elbows

Angled connectors known as elbows play an indispensable role in pipe systems, allowing for changes in direction. You'll find elbows in various angles, with 90-degree and 45-degree elbows being the most common types. 90-degree elbows create sharp turns in piping, ideal for corners or when you need to change direction abruptly. They're often used in residential plumbing and industrial applications.

45-degree elbows, on the other hand, offer a more gradual change in direction. You'll typically use these when you need a smoother flow or when space constraints prevent the use of 90-degree elbows. They're particularly useful in long pipe runs where you want to minimize pressure loss.

Elbows come in different materials, such as PVC, copper, brass, and steel, to suit various applications. You'll need to choose the right material based on the fluid being transported and the environmental conditions. When installing elbows, it's essential to confirm proper alignment and secure connections to prevent leaks. Remember, the choice between 90-degree and 45-degree elbows can profoundly impact your system's efficiency and performance.

Tees

T-shaped fittings known as tees are important components in pipe systems, allowing for branch connections and flow distribution. You'll find tees in various materials, including PVC, copper, and steel, to match your specific piping needs. These versatile fittings have three openings: two in-line ports and one branch port perpendicular to the main line.

Standard tees have equal-sized openings, but you'll also encounter reducing tees with a smaller branch port. These are useful when you need to connect a smaller pipe to a larger main line. Branch tees, another variation, have a curved design that reduces turbulence and pressure drop in the system.

When installing tees, you'll need to contemplate factors like flow direction, pressure requirements, and material compatibility. They're commonly used in plumbing systems to create multiple pathways for water or other fluids. You can also use tees to add instruments, valves, or other fittings to your piping system.

Remember that proper installation is imperative for leak-free connections. Always follow manufacturer guidelines and local plumbing codes when working with tees to guarantee your pipe system functions efficiently and safely.

Unions

While tees facilitate branching connections, unions offer a different kind of flexibility in pipe systems. Unions are designed to allow for easy disconnection and reconnection of pipes without disturbing the rest of the system. They're particularly useful in situations where you need to perform maintenance, repairs, or replacements on specific sections of your piping.

There are two main types of unions you'll encounter:

1. Threaded unions
2. Split unions

Threaded unions consist of three parts: two threaded ends and a nut that joins them together. You'll screw the threaded ends onto your pipes, then use the nut to tighten the connection. This design allows you to quickly separate the pipes by loosening the nut.

Split unions, on the other hand, feature a two-piece design that clamps around the pipes. They're ideal for situations where you can't rotate the pipes to create a threaded connection. Split unions are often used in tight spaces or when working with larger diameter pipes.

When selecting a union, consider factors such as:

1. Pipe material compatibility
2. Pressure and temperature requirements
3. Ease of installation and maintenance
4. Cost-effectiveness for your specific application

Reducers

Reducers play a pivotal role in pipe systems where you need to change the diameter of your pipes. These fittings allow you to connect pipes of different sizes, ensuring a seamless transition and maintaining proper flow. You'll find two main types of reducers: concentric reducers and eccentric reducers.

Concentric reducers are symmetrical, with their centerline aligned with both the larger and smaller pipe sections. They're ideal for vertical pipe runs and situations where you don't need to worry about air pockets or liquid drainage. You'll often see them in pressurized systems or where maintaining a uniform flow is paramount.

Eccentric reducers, on the other hand, have an offset design. One side of the fitting is flat, while the other side tapers. This configuration is perfect for horizontal pipe runs where you need to prevent air or liquid accumulation. You'll typically use eccentric reducers in systems where avoiding trapped air or ensuring complete drainage is indispensable.

When choosing between concentric and eccentric reducers, consider your specific application, flow requirements, and potential issues like air entrapment or liquid retention. Proper selection will help you maintain efficient pipe system performance and prevent potential problems down the line.

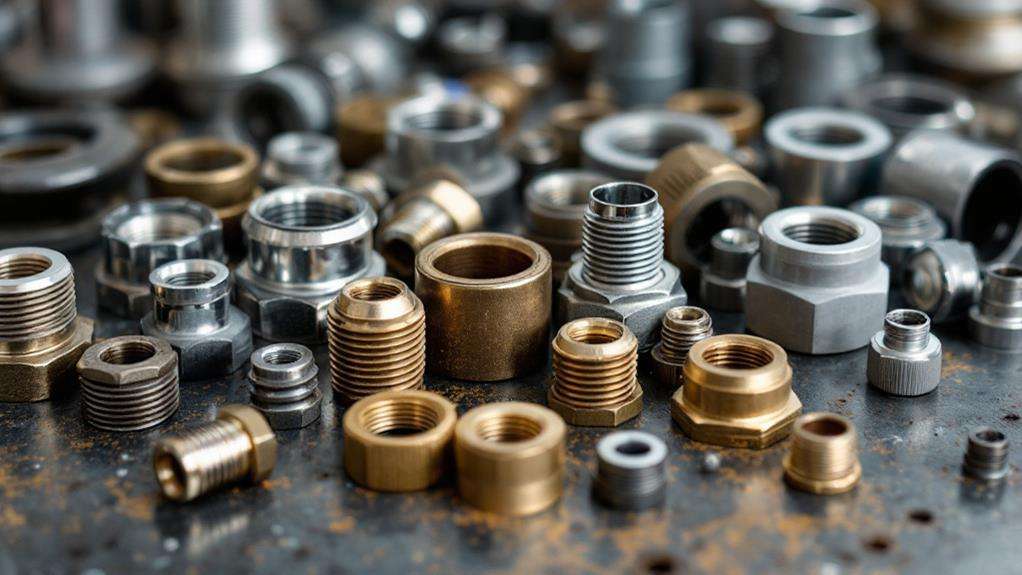

Nipples

Nipples, often overlooked but essential components in pipe systems, serve as short connecting pieces between other fittings or equipment. You'll find these small but indispensable elements in various plumbing and industrial applications. Threaded nipples are the most common type, featuring external threads on both ends for easy installation and removal.

When selecting nipples, consider these key factors:

1. Length: Ranging from close nipples to longer versions
2. Material: Available in steel, brass, stainless steel, and plastic
3. Diameter: Matching the connected pipes' size
4. Schedule: Determining the wall thickness and pressure rating

Specialty nipples cater to specific needs. You might encounter swage nipples for size adaptations, hex nipples for wrench grip, or welding nipples for permanent connections. Some nipples feature different thread types on each end, allowing you to join dissimilar fittings.

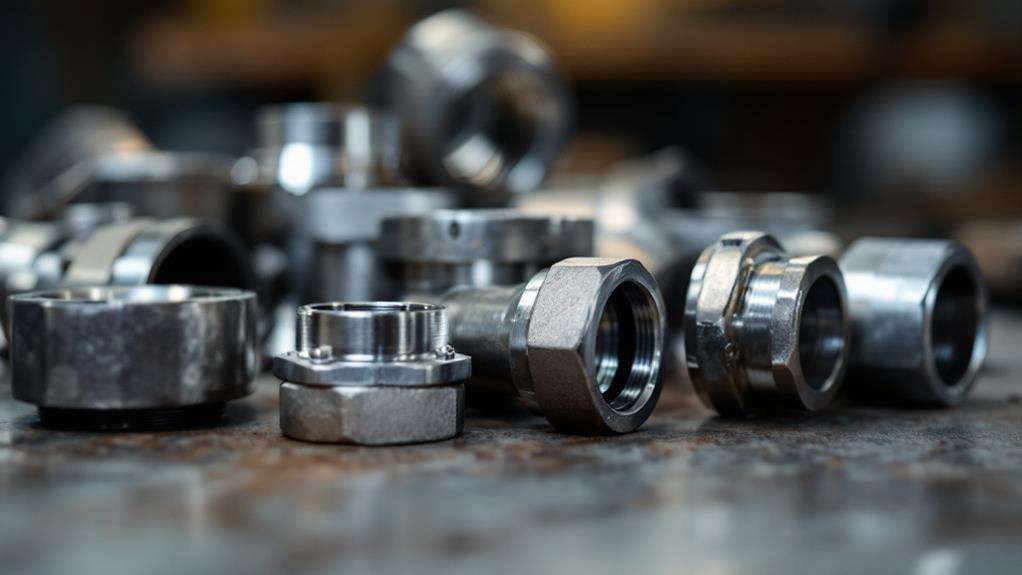

Adapters

Adapters play an essential role in pipe systems, offering versatility where nipples may fall short. These inline connectors allow you to join pipes of different sizes, materials, or thread types, ensuring a seamless flow within your plumbing or industrial setup. You'll find adapters in various configurations, including male-to-female, female-to-female, and male-to-male, each serving a specific purpose in your piping network.

One popular type you might encounter is push to connect adapters. These innovative fittings enable quick and easy connections without the need for special tools or soldering. You simply push the pipe into the adapter, and its internal mechanism secures it in place, creating a leak-free seal. This time-saving feature makes push to connect adapters ideal for both DIY enthusiasts and professional plumbers.

When selecting adapters, you'll need to consider factors such as the pipe material, pressure requirements, and temperature range of your system. By choosing the appropriate adapter, you can efficiently bridge gaps between different pipe sections, change flow directions, or shift between pipe types, ensuring your system functions ideally and meets all necessary regulations.

Flanges

Among the most sturdy pipe connectors, flanges stand out for their strength and versatility. They're circular disks that attach to the end of pipes, creating a secure connection when bolted together. You'll find flanges in various industries, from plumbing to oil and gas, where high-pressure systems require reliable joints.

There are several types of flanges, including concentric flanges and raised face flanges. Concentric flanges have a uniform thickness across their surface, while raised face flanges feature a slightly increased area around the bore. This raised section provides a tighter seal when two flanges are joined.

When working with flanges, you'll need to ponder:

1. Material compatibility with the fluid being transported
2. Pressure and temperature ratings of the system
3. Corrosion resistance requirements
4. Cost and availability of the flange type

Flanges offer numerous advantages, such as easy disassembly for maintenance, leak-proof connections, and the ability to withstand high pressures. However, they can be more expensive than other connectors and may require more installation space. You'll need to weigh these factors when choosing the suitable flange for your specific application.

Caps and Plugs

While flanges excel in connecting pipes, sometimes you need to seal off an opening entirely. That's where caps and plugs come in handy. These essential pipe connectors are designed to close off pipe ends, preventing the flow of liquids or gases and protecting the pipe's interior from contamination.

Caps are typically used for temporary closure and can be easily removed when needed. You'll find two main types: threaded caps and push-on caps. Threaded caps screw onto the pipe end, providing a secure seal. They're ideal for high-pressure applications and offer excellent durability. Push-on caps, on the other hand, simply slide over the pipe end and are held in place by friction. They're quick to install and remove, making them perfect for frequent access points.

Plugs serve a similar purpose but are inserted into the pipe's opening rather than covering it from the outside. They're available in various materials, including metal, plastic, and rubber, to suit different pipe types and environmental conditions. When choosing between caps and plugs, consider factors like the pipe's material, pressure requirements, and how often you'll need to access the sealed end.

Compression Fittings

Compression fittings stand out from among the various pipe connectors due to their versatility and ease of use. You'll find these fittings particularly useful when working with copper, brass, or plastic pipes. Unlike soldered joints, compression fittings don't require heat, making them safer and more convenient for DIY projects.

When using compression fittings, you'll typically encounter four main components:

1. The compression nut
2. The compression ring (also called a ferrule)
3. The fitting body
4. The pipe or tube

To install a compression fitting, you'll slide the nut and ferrule onto the pipe, then insert the pipe into the fitting body. As you tighten the nut, it compresses the ferrule, creating a watertight seal.

Compression fittings are often confused with swage fittings and press fit fittings. While swage fittings use a similar compression principle, they're typically used in industrial applications. Press fit fittings, on the other hand, rely on a special tool to create a seal, making them faster to install but less adaptable than compression fittings.

You'll appreciate compression fittings for their reliability and the fact that they can be easily disassembled and reused, making them ideal for temporary or adjustable connections.
