Everything You Need to Know About Compression Fittings

Compression fittings are essential components in plumbing and piping systems. They create watertight seals by compressing a ferrule onto the pipe's surface, joining pipes or tubing without specialized tools. You'll find them in various materials like brass, stainless steel, or plastic, working with different pipe types. These fittings come in straight couplings, elbows, tees, and more, offering versatility for multiple applications. They're easy to install, reliable under pressure, and reusable. You'll encounter compression fittings in plumbing, HVAC, industrial settings, and even automotive systems. By understanding their types and advantages, you'll be better equipped to tackle your next piping project.

What Are Compression Fittings?

Compression fittings are mechanical devices used to join pipes or tubing without the need for soldering or welding. They're designed to create a watertight seal by compressing a ring or ferruleor ferruleonto the pipe's surface. You'll find these fittings commonly used in plumbing, hydraulic, and pneumatic systems.

The main compression fitting components include a nut, a ring (or ferrule), and a body. When you tighten the nut, it forces the ring against the pipe and the fitting body, creating a secure connection. This design allows for easy installation and disassembly, making them ideal for temporary or permanent connections.

Compression fitting materials vary depending on the application. You'll typically encounter brass, stainless steel, or plastic fittings. Brass is popular for its durability and corrosion resistance, while stainless steel offers superior strength and chemical resistance. Plastic fittings are lightweight and cost-effective, suitable for low-pressure applications.

These fittings work with various pipe materials, including copper, plastic, and stainless steel. They're particularly useful in situations where heat-based joining methods aren't practical or safe. You'll appreciate their versatility and ease of use in both residential and industrial settings.

How Compression Fittings Work

In order to understand compression fittings, you'll need to grasp their working principle. Compression fitting mechanics rely on creating a watertight seal between pipes or tubing and the fitting itself. This seal is achieved through the use of three main compression fitting components: the body, the nut, and the ferrule.

When you insert a pipe or tube into the fitting's body, you'll place the nut and ferrule over the pipe's end. As you tighten the nut, it pushes the ferrule against the fitting's body, causing it to compress. This compression forces the ferrule to grip the pipe tightly while simultaneously sealing against the fitting's internal surface.

The ferrule, typically made of brass or another soft metal, deforms slightly during this process, molding itself to both the pipe and the fitting. This deformation creates an effective, leak-proof connection that can withstand high pressures and temperatures.

You'll find that the efficacy of compression fittings depends on proper installation. It's essential to ensure the pipe is fully inserted, the ferrule is correctly oriented, and the nut is tightened to the manufacturer's specifications. Over-tightening can damage the components, while under-tightening may result in leaks.

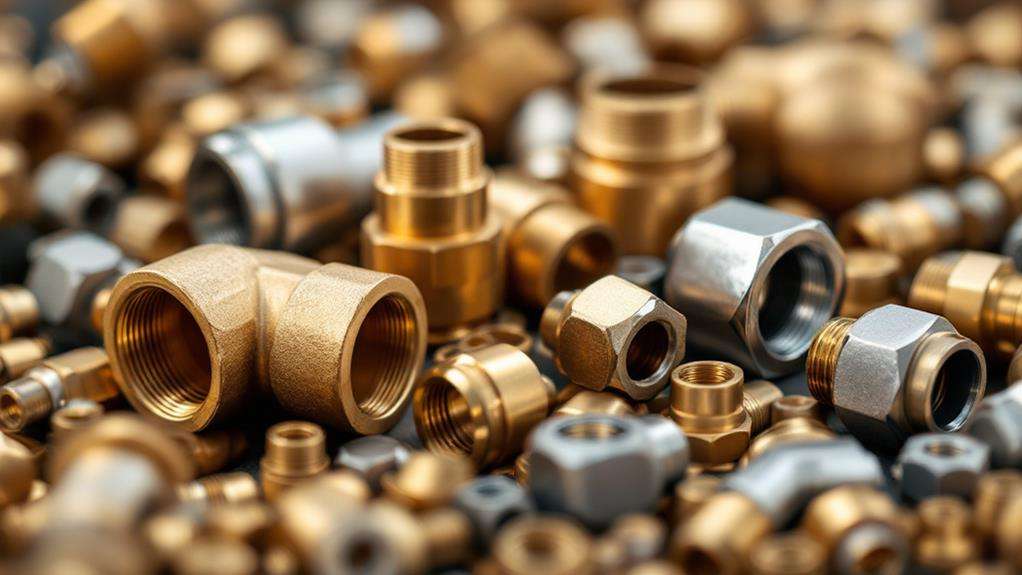

Types of Compression Fittings

When you examine the world of compression fittings, you'll uncover various types designed for different applications and materials. The most common compression fitting materials include brass, stainless steel, and plastic, each offering unique properties suited for specific environments and substances.

Compression fitting sizes range from small 1/8-inch connections to larger 2-inch fittings, accommodating a wide array of piping systems. Here are four primary types of compression fittings you'll encounter:

1. Straight couplings: These join two pipes of the same diameter in a straight line.
2. Reducing couplings: Used to connect pipes of different diameters.
3. Elbows: Available in 45° and 90° angles, they change the direction of pipe flow.
4. Tees: These three-way fittings allow for branching connections in piping systems.

Other types include caps for sealing pipe ends, unions for easy disassembly, and adapters for moving between different fitting types. When selecting a compression fitting, consider the material compatibility, pressure requirements, and temperature range of your application. By choosing the right type and size, you'll establish a secure and leak-free connection in your plumbing or fluid system.

Advantages of Compression Fittings

The advantages of compression fittings make them a popular choice for many plumbing and fluid system applications. You'll find that these fittings offer simple installation, allowing you to connect pipes quickly and efficiently without specialized tools or skills. Unlike soldered or welded joints, compression fittings don't require heat, making them safer to work with and reducing the risk of fire hazards.

Another key benefit is their reliable performance under various conditions. Compression fittings create a tight seal that can withstand high pressures and temperatures, ensuring leak-free connections. They're also versatile, working well with different types of pipes, including copper, plastic, and stainless steel.

You'll appreciate the reusability of compression fittings. If you need to make changes or repairs to your system, you can easily disassemble and reassemble the fittings without damaging the components. This feature saves you time and money in the long run.

Compression fittings are also ideal for locations with limited space or access. Their compact design allows for installation in tight spots where other joining methods might be impractical. Additionally, they provide excellent vibration resistance, making them suitable for applications with moving parts or fluctuating pressures.

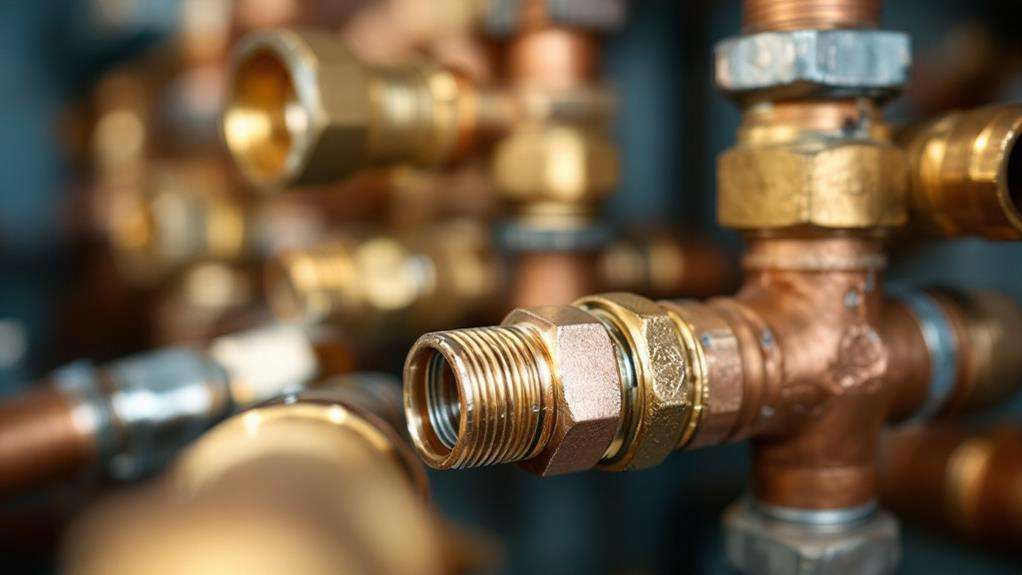

Common Applications

Across various industries, you'll find compression fittings used in a wide range of applications. These versatile components are particularly common in plumbing systems and HVAC applications, where they provide reliable connections for pipes and tubing.

In residential and commercial plumbing, you'll encounter compression fittings in:

1. Water supply lines for sinks, toilets, and appliances
2. Shower and bathtub installations
3. Outdoor irrigation systems
4. Water heater connections

HVAC systems heavily rely on compression fittings for refrigerant lines, condensate drains, and air distribution networks. They're also prevalent in industrial settings, where they're used for pneumatic and hydraulic systems, as well as in the transportation sector for fuel and brake lines.

You'll find compression fittings in laboratory equipment, where they're essential for maintaining leak-free connections in sensitive experiments. The food and beverage industry employs these fittings in processing equipment and dispensing systems. In the automotive world, they're indispensable for fuel lines, brake systems, and air conditioning units. Even in the aerospace industry, compression fittings play a fundamental role in hydraulic and pneumatic systems, ensuring the safety and efficiency of aircraft operations.

Installation Best Practices

Proper installation is essential for guaranteeing the effectiveness and longevity of compression fittings. To achieve the best results, follow these proper installation steps and effective sealing techniques.

First, cut your tubing squarely using a tube cutter, making certain of a clean, even edge. Deburr the cut end to remove any sharp edges or debris. Slide the compression nut onto the tube, followed by the ferrule, making sure they're oriented correctly. Insert the tube into the fitting body until it's fully seated against the shoulder inside.

Tighten the nut by hand until you feel resistance, then use a wrench to tighten it further. For most fittings, you'll want to tighten 1 1/4 to 1 1/2 turns past hand-tight. Be careful not to overtighten, as this can damage the fitting or tube.

Always check for leaks after installation by pressurizing the system. If you notice any leaks, tighten the nut slightly more. For plastic tubing, consider using tube inserts to prevent collapse and assure a tight seal. Remember to follow manufacturer-specific guidelines, as different materials and sizes may require slight variations in installation technique.

Troubleshooting and Maintenance

While compression fittings are generally reliable, you may occasionally encounter issues that require troubleshooting and maintenance. If you notice a leak or suspect a problem, it's imperative to address it promptly to prevent water damage and safeguard system efficiency.

When troubleshooting compression fittings, focus on identifying leak sources and evaluating compression nut condition. Start by carefully inspecting the entire fitting, including the nut, ferrule, and tubing. Look for signs of corrosion, damage, or improper installation. If you can't easily locate the leak, try using a leak detection solution or wrapping the fitting with tissue paper to pinpoint the source.

To maintain your compression fittings and prevent issues:

1. Regularly inspect fittings for signs of wear or damage
2. Tighten loose nuts gently, being careful not to over-tighten
3. Clean fittings periodically to remove dirt and debris
4. Replace worn or damaged components promptly

If you've tightened the compression nut and the leak persists, you may need to replace the ferrule or the entire fitting. Remember, proper maintenance and timely repairs will extend the life of your compression fittings and guarantee their continued reliability.
