Complete Guide to Plumbing Fittings and Connectors for Beginners
Plumbing fittings and connectors are essential components in any home's water system. You'll encounter various types, including elbows, couplings, reducers, and tees, each serving a specific purpose. These fittings come in materials like copper, brass, PVC, and galvanized steel, suited for different applications. When choosing fittings, consider pipe size, material compatibility, and function. Proper installation techniques, such as soldering or threading, are pivotal for a leak-free system. Regular maintenance helps prevent common issues like leaks and misalignments. By understanding these basics, you'll be better equipped to tackle simple plumbing projects and recognize when to call a professional. The world of plumbing fittings goes even deeper than you might expect.
Types of Plumbing Fittings
Plumbing fittings come in a wide variety of shapes, sizes, and materials to suit different needs. You'll encounter several common types as you work on plumbing projects. Elbows are L-shaped fittings used to change the direction of pipes, available in 45 and 90-degree angles. Couplings connect two pipes of the same diameter, while reducers join pipes of different sizes, essential for proper pipe sizing.
Tees are T-shaped fittings that split one pipe into two or combine two pipes into one. Unions allow for easy disconnection and reconnection of pipes without cutting. Caps and plugs seal off pipe ends, with caps fitting over the outside and plugs inserted inside. Adapters help connect pipes of different materials or threading types.
For joint sealing, you'll use various methods depending on the fitting type. Threaded fittings require pipe tape or thread sealant, while solvent welding is used for PVC and CPVC fittings. Compression fittings use rubber or metal ferrules to create a watertight seal. Understanding these basic fitting types and their sealing methods will help you tackle most plumbing projects confidently.
Essential Plumbing Connectors
Proficiency of critical plumbing connectors is fundamental for victorious DIY projects and basic repairs. You'll encounter various connectors designed to join pipes and fittings, each serving a specific purpose. Couplings are straightforward connectors that join two pipes of the same diameter, while reducers allow you to connect pipes of different sizes. When working with tight spaces, you'll find fittings for small spaces priceless, such as slip couplings and compression fittings.
Unions are vital connectors that enable easy disassembly for maintenance, while flanges provide a secure connection for high-pressure systems. Don't overlook the importance of pipe diameter considerations when selecting connectors. Ensure you choose the correct size and type for your specific plumbing needs.
For joining pipes at angles, you'll use elbows, which come in various degrees like 45° and 90°. Tees allow you to create branch lines, while cross fittings connect four pipes. When shifting between different materials, such as copper to PVC, you'll need transition fittings. By familiarizing yourself with these essential plumbing connectors, you'll be better equipped to tackle various plumbing tasks with confidence.
Materials Used in Fittings

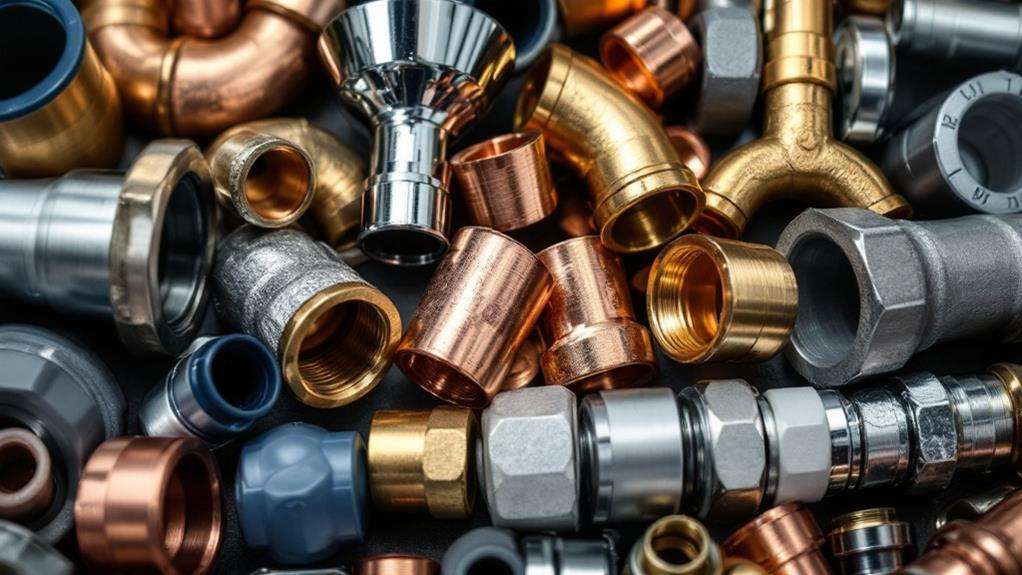

When it comes to plumbing fittings, you'll encounter a variety of materials, each with its own strengths and applications. Understanding these materials is indispensable for selecting the right fittings for your project. The most common materials include copper, brass, PVC, ABS, and galvanized steel.
Copper fittings are durable, corrosion-resistant, and ideal for both hot and cold water lines. They're often used in residential plumbing due to their reliability and longevity. Brass fittings, known for their strength and durability, are frequently used in areas with high water pressure or where extra stability is needed.
PVC (polyvinyl chloride) and ABS (acrylonitrile butadiene styrene) are plastic materials commonly used for drain and vent systems. They're lightweight, affordable, and resistant to chemical corrosion. Galvanized steel fittings, while less common in modern plumbing, are still used in some industrial applications due to their strength.
The pipe composition and manufacturing processes play a significant role in determining a fitting's suitability for specific tasks. For example, copper fittings are typically made through casting or forging, while plastic fittings are usually injection molded. Understanding these factors will help you choose the most appropriate fittings for your plumbing needs.
Choosing the Right Fitting
Selecting the right fitting is essential for guaranteeing a leak-free, efficient plumbing system. When choosing a fitting, consider the specific requirements of your project, including pipe size, material compatibility, and the intended function. Different fitting types serve various purposes, such as joining pipes, changing direction, or adapting to different sizes.
Start by identifying the fitting materials that best suit your needs. Common options include brass, copper, PVC, and stainless steel. Each material has its strengths and weaknesses, so consider factors like durability, cost, and resistance to corrosion. Next, determine the appropriate fitting type for your application. Some popular choices include:
- Elbows for changing direction
- Couplings for joining pipes of the same size
- Reducers for connecting pipes of different diameters
- Tees for creating branch lines
Always measure your pipes accurately to certify a proper fit. When in doubt, consult a professional plumber or refer to local building codes for guidance. Remember that using the wrong fitting can lead to leaks, reduced water pressure, or even system failure. By taking the time to choose the right fitting, you'll save yourself headaches and costly repairs down the road.
Installation Techniques

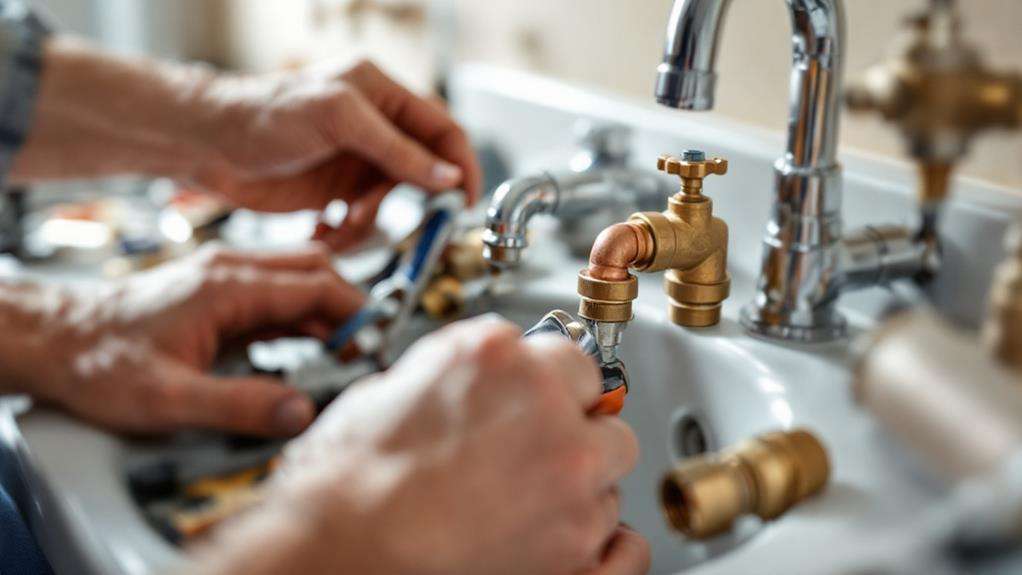

With the right fittings in hand, it's time to focus on proper installation techniques. You'll need to become proficient in various methods depending on the type of fittings and pipes you're working with. For copper pipes, soldering techniques are indispensable. Start by cleaning the pipe ends and fittings with a wire brush and applying flux. Heat the joint evenly with a torch, then apply solder to create a watertight seal.
When working with threaded pipes, pipe threading methods come into play. Use a pipe threader to cut precise threads, guaranteeing a snug fit. Apply pipe joint compound or Teflon tape to the male threads before connecting to prevent leaks.
For plastic pipes, such as PVC or PEX, you'll often use compression fittings or push-to-connect systems. These don't require special tools but demand careful alignment and proper insertion depth.
Remember to always follow local plumbing codes and manufacturer instructions. Take your time to guarantee each connection is secure and leak-free. If you're unsure about any step, consult a professional plumber or experienced DIYer for guidance. Proper installation techniques are vital for a reliable and long-lasting plumbing system.
Common Fitting Problems
Although proper installation techniques are indispensable, even experienced plumbers can encounter common fitting problems. You'll likely face issues like leaky connections, misaligned fittings, and overtightened joints during your plumbing projects. It is vital to recognize these problems early and address them promptly to prevent water damage and ensure your plumbing system functions correctly.
Leaky connections often result from improper sealing or worn-out components. You can usually fix these by applying pipe thread compound or replacing damaged washers. Misaligned fittings can cause stress on the pipes, leading to leaks or even pipe failure. To avoid this, always double-check your measurements and use proper support when installing pipes.
When dealing with common fitting problems, keep these visual cues in mind:
- Water droplets forming around joint areas
- Discoloration or corrosion on metal fittings
- Visible gaps between connected pieces
- Unusual sounds like hissing or gurgling from pipes
Maintenance and Care

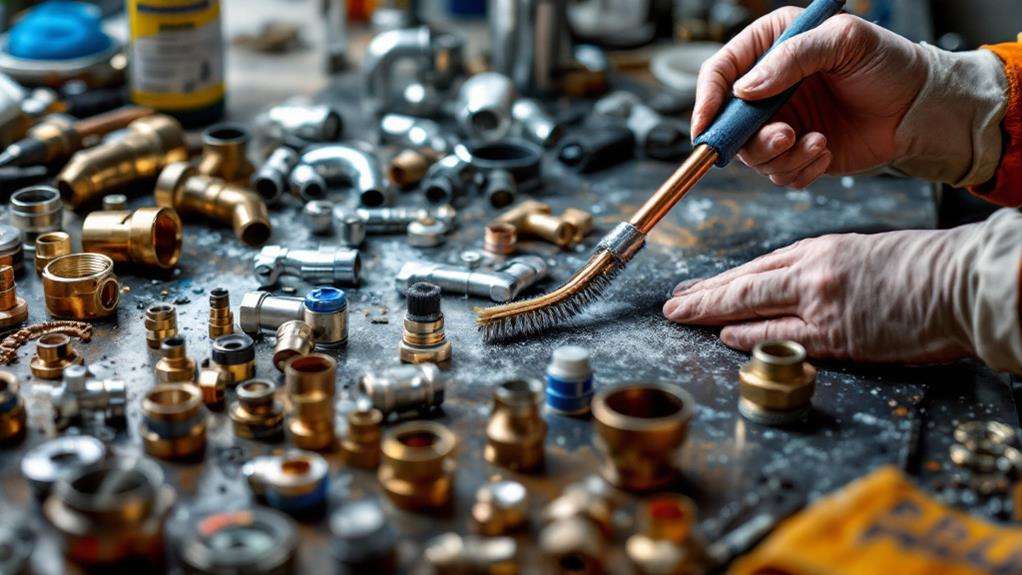

Regular maintenance is essential for keeping your plumbing fittings and connectors in top condition. To safeguard your system's longevity, you'll need to perform routine leak detection and pipe inspections. Check for signs of corrosion, rust, or mineral buildup around fittings and connectors. If you notice any discoloration or dampness, it's pivotal to address the issue promptly.
Tighten loose fittings gently with a wrench, but be careful not to over-tighten, as this can cause damage. Clean your fittings and connectors periodically using a mild soap solution and a soft brush to remove debris and prevent buildup. For metal fittings, apply a thin layer of plumber's grease to threads to prevent seizing and make future repairs easier.
Don't forget to inspect your pipe insulation regularly, especially in areas prone to freezing. Replace damaged insulation to prevent pipe bursts. If you're unsure about your plumbing system's condition, consider hiring a professional for a thorough inspection. They can identify potential issues before they become major problems, saving you time and money in the long run. By staying proactive with maintenance, you'll extend the life of your plumbing fittings and connectors.
Advanced Fitting Applications
Once you've learned basic plumbing maintenance, you're ready to investigate advanced fitting applications. These specialized applications involve customized configurations that go beyond standard residential plumbing setups. You'll encounter unique challenges in industrial, commercial, and specialized residential projects that require more complex fitting arrangements.
Advanced fitting applications often include:
- High-pressure systems for industrial use
- Chemical-resistant piping for laboratories
- Radiant floor heating configurations
- Solar water heating systems
When working with advanced fittings, you'll need to ponder factors like extreme temperatures, corrosive substances, and varying pressure levels. You'll also encounter specialized fittings such as manifolds, diverter valves, and expansion joints. These components allow for more intricate plumbing designs and enhanced functionality.
To succeed in advanced fitting applications, you'll need to develop a comprehensive understanding of material compatibility, flow dynamics, and thermal expansion. You'll also need to familiarize yourself with industry-specific codes and regulations. As you gain experience, you'll be able to create customized configurations that meet the unique needs of each project, whether it's a complex industrial process or a high-end residential installation with multiple water features.
